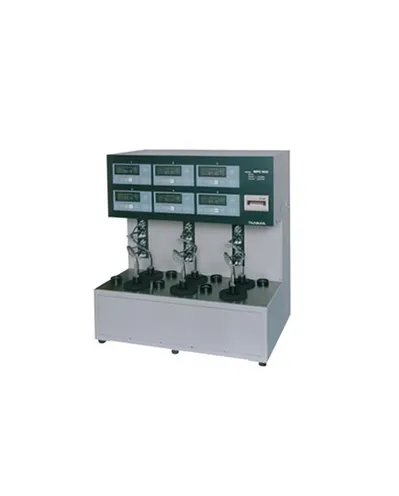

Tanaka MPC602 has been designed for automatic determination of POUR POINT (PP) and CLOUD POINT (CP) with small specimen size and shorter test cycle time while securing better test precision than the conventional manual methods. PP measurement is by "AIR PRESSURE METHOD" (ASTM D6749), and CP measurement is by "SMALL TEST JAR METHOD" (ASTM D7683). The epoch-making automatic PP test method yields 1°C test resolution, while the new CP method yields 0.1°C resolution
Test methods : PP : ASTM D6749, ASTM D97, ISO 3016 CP : ASTM D7683, ASTM D2500, ISO 3015 Type : Bench top, 6 positions, with liquid cooled Peltier cooler Measuring range : +51 to -65°C when used with 3 sets of TCU-40B chiller (opt) Sample automatic pre-heating : Automatic preheating at either +45 ºC or EPP+10 ºC (EPP=Expected Pour Point) Display : VFD modules (×6) Specimen volume : 4,5 ml Ext. port : RS-232C Power consumtion : 1.5kW Size : 800(W) × 550(D) × 850(H) mm Weight : 100kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
