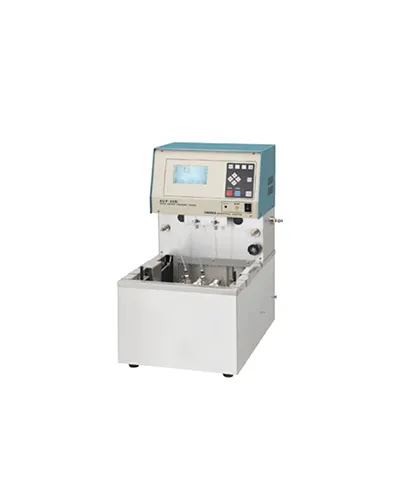

AVP-30D automatically measures Reid vapor pressure (RVP) utilizing a miniaturized bomb. While ease of operation and smaller instrument size are achieved with the smaller size bombs, test result precisely agrees with that of the regular size Reid bomb
Test methods : ISO 3007, ASTM D323, IP69 Type : bench-top with 2, 3, or 4 Demi-size bombs Range : 0 to 196kPa (2kgf/cm²) Bomb : stainless steel bomb with approx. 60% in length and 30% in volume of regular Reid bomb Pressure sensor : Semiconductor type pressure sensor. Range : 0 to 196kPa (2kgf/cm2) Linearity : <0.3% of the range Hysteresis : <0.3% of the range Power consumption : 2kW Option : manometer, air compressor Size / dry weight : 400(W) × 600(D) × 740(H) mm / 45kg
Motwane OTS60A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS80A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
Motwane OTS100A is fully automatic microprocessor based kit designed with advanced features to measure breakdown voltage of insulation oil. It can measure breakdown voltage more accurately & precisely due to quick sensing ability of kit. The OTS-A Series has preprogrammed worldwide acceptable standards with user friendly customized standards. The large LCD display with touchpad for easy operation. It is provided with internal memory for 100 data storage & inbuilt printer for onsite report. The kit is protected from damage by automatic detection of poor input ground. The acrylic oil test vessel provided with adjustable electrode gap setting to test as per standards. The portable voltage calibrator useful for onsite calibration which saves cost & time of user
