Laboratory Oil Tester - Megger OTS100AF

Category :
Lube, Oil and Grease Analyzer

Price :

Rp.348.900.000

Chat Us

DESCRIPTION
SPECIFICATION

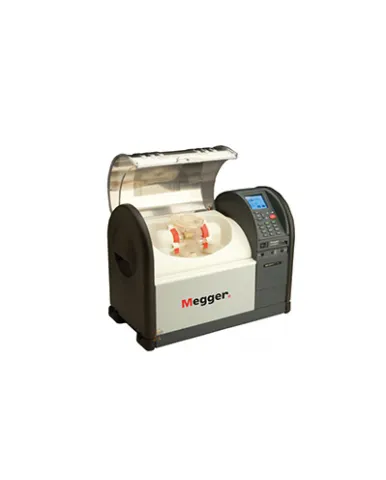

Megger’s automatic laboratory oil test sets perform accurate breakdown voltage tests on mineral, ester and silicon insulating liquids. Moulded test vessels give repeatable results with lock in precision electrode gap setting adjustment wheels. The transparent, shielded lid and large test chamber enable easy access to the test vessel. All three laboratory models are fitted with a 12 key alphanumeric keypad to facilitate entry of test ID, filenames, notes etc. Alpha characters are entered by repetitive pressing on a key, the same way as text is entered modern cellular telephones.

Test voltage : 0 to 100 kV rms maximum (50 kV - 0 - 50 kV)
Voltage resolution and accuracy : 0.1 kV °1% °2 digits
Programmed test sequences : ASTM D 1816-04, BS EN 60156-96, SABS EN60156, ASTM D 877A-02, CEI EN 60156-95, VDE0370 part 5, ASTM D 877B-02, IRAM 2341, AS1767.2.1, IEC 60156-95, UNE EN 60156
Vessels : 400 ml (standard) 150 ml (option) Nylon 12 chamber provides precision electrode alignment, adjustment wheels lock electrodes in position, option of 150 ml vessel for low volume oil samples
Temperature measuring range : 10 °C to 65 °C
Temperature sensor resolution : 1 °C
Power supply : Line voltage 85 to 265 VAC & Line frequency 50/60 Hz
Protection : Dual safety micro switches on chamber cover
Display : 320 x 240 QVGA colour display with backlight
Operating temperature range and humidity : 0 °C to +50 °C & 80% RH at 40 °C
Storage temperature range and humidity : -30 °C to +65 °C & 95% RH at 40 °C
Maximum altitude : 2000 m
