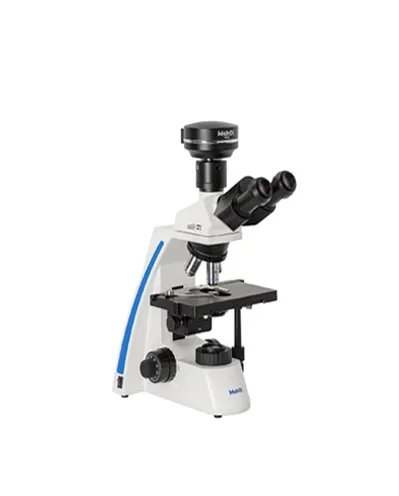

MSHOT ML31 biological microscope received positive feeback from medical and educational area, it offers superior optical performance with excellent cost-effciency. Plan achromatic objectives are flat and clear in view, bring microscope users high contrast and sharpness image. Wide field of view eyepiece is high efficiency for microscopy work. The illumination employs cold LED light has high bright and stable lighting.
Spesifikasi: Optical system: Infinity Corrected Achromatic optical system Observation tube: Hinged Trinocular tube, 30° inclined, interpupillary distance 53mm-75mm Eyepiece: Wide field plan eyepiece WF10X / FN22mm , high eyepoint Optional eyepiece: Wide field plan eyepiece WF16X/ F.N.15mm Nosepiece: Quadruple nosepiece with inward tilt Objective: Infinity plan achromat objectives 4X, NA0.1, working distance 21.5mm 10X, NA0.25, working distance 7.5mm 40X, NA0.60, working distance 0.65mm 100X(oil), NA1.25, working distance 0.185mm Optional objectives: Plan achromat 20X, NA0.40 Condenser: Abbe condenser NA1.25 Focus: Coaxial coarse and fine adjustment with limit stopper and lock device Stage height movement (coarse movement stroke: 24mm) Stroke per rotation: 40mm Microstroke per rotation: 0.2mm Stage: Double-deck mechanical stage, size 210×140mm, moving range 76mm×50mm slider holder can hold double pieces slides at one time Transmitted light: White LED, brightness adjustable Power line International standard Adapter: 1X C-mount adapter Optional adapter: 0.5X C-mount adapter
Biological microscope ML11 is a basic optical microscope equipped with plan achromatic objectives and wide field eyepiece, featured with clear view, wide field and easy operation. It is quite popular for teachers and students to achieve interactive teaching on biology science. The biological microscope is widely used in the fields of biology, agriculture and it is an ideal instrument for education departments.
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties. Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.
