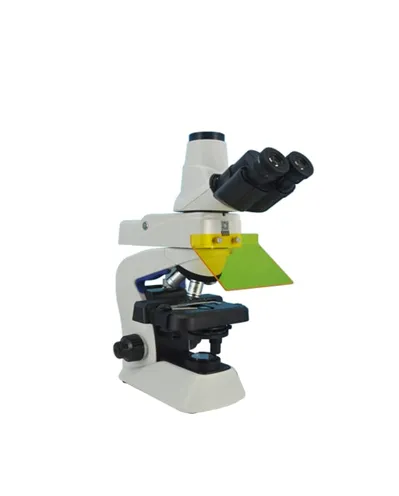

Fluorescence biological microscope MF23 takes use of Olympus CX23 biological microscope as main body, and MSHOT self designed LED fluorescence attachment come into being a favorable epi-fluorescence microscope for lab working. Working with trinocular head the microscope is ideal for both of eyepiece view and photography on PC. The microscope is popular sued at clinical centers and university labs, used to observe cells, tissues, bacteria of bright field and immunofluorescence observation methods.
Spesifikasi: Optical system: Infinity optical system Eyepiece: Wide field WF10X/FN:20mm (anti-fungus) Observation head: Trinocular head with triple light split 0 / 50% /100% Objective: Infinity plan achromat 4X/0.10, working distance 27.8mm Infinity plan achromat 10X/0.25,working distance 8.0mm Infinity plan achromat 40X/0.65,working distance 0.60mm Infinity plan achromat 100X/1.25(spring), working distance 0.13mm Focusing system: Fine and coarse adjustment with tension and limited stopper, minimu adjustment gradations:2.5um,coarse movement stroke:15mm Nosepiece: Quadruple fixed nosepiece Stage: Wire movement mechanical fixed stage, size 120mmx132mm, travelling range 76mmx30mm Single specimen holder Condenser: Abbe condenser, NA 1.25 (with immersion oil), inter set aperture diaphragm Fluorescence illumination: LED fluorescence illuminator 3W LED Blue excitation: EX460~490nm, DM>500nm, EM>510nm Transmitted illumination: Built-in transmitted illumination system, LED power Consumption 0.5W(nominal values) Optional: 6V 20W halogen lamp Power source: AC, 100-240V, 50~60Hz
Biological microscope ML11 is a basic optical microscope equipped with plan achromatic objectives and wide field eyepiece, featured with clear view, wide field and easy operation. It is quite popular for teachers and students to achieve interactive teaching on biology science. The biological microscope is widely used in the fields of biology, agriculture and it is an ideal instrument for education departments.
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties. Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.
