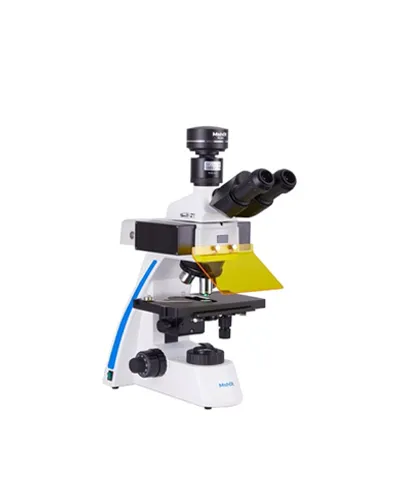

MF31 series fluorescence microscope adopting excellent quality infinity optical system combined with LED fluorescence illuminator. The LED fluorescence system is modular design, does not need external power box, it can offer blue, green and UV fluorescence excitation groups. Digital screen shows and remember each fluorescence channel light intensity. The microscope is good for entry level fluorescence observation such as immunofluorescence and bio-fluorescence, and bright field of biological slide.
Spesifikasi: Optical system: Infinite achromat optical system Observation tube: Trinocular tube, (0-20/80-100) 30°inclined, pupil distance 55~75mm Eyepiece: WF10X/FN22mm Fluorescence illumination system: LED fluorescence module with light barrier 3W LED lamp for each excitation group Blue: EF450nm-490nm, EM>520nm Green: EF510nm~550nm, EM>590nm UV: EF330~380nm, EM>420nm Optional excitation groups: RB- Royal blue: EX420~480nm Y-Yellow: EX540nm~580nm Nosepiece Backward quadruple nosepiece Infinity plan achromat objectives: 4X/0.1W.D.=21.5mm 10X/0.25 W.D.=7.5mm 40X/0.65 W.D.=0.65mm 100X/1.25 W.D.=0.185mm Optional objectives: Plan 20X/non-cover glass 20X/ non-cover glass 40X Mechanical stage: Double layer mechanical movable stage, size 210x140mm, travel motion76x50mm Focusing system: Fine and coarse adjustment with tension and limited stopper, 2μm scale, coarse stroke per rotation 40mm, fine stroke per rotation 2μm, focusing vertical movement 24mm Abbe Condenser: NA.1.25, Built-in aperture diaphragm Transmission Illumination system: 5W white LED , brightness adjustable Camera interface: 0.5X C-mount Optional adapters: 1X, 0.75X Operating environment Temperature: 5~40℃(41~104°F), Max. Relative humidity 80%, 31℃ Power Source: AC, 100-240V, 50~60Hz for microscope body 12V 2A for fluorescence module Fuse: φ5,F0.5AL250V Accessories: MSHOT dust cover, allen driver, light barrier plate
Biological microscope ML11 is a basic optical microscope equipped with plan achromatic objectives and wide field eyepiece, featured with clear view, wide field and easy operation. It is quite popular for teachers and students to achieve interactive teaching on biology science. The biological microscope is widely used in the fields of biology, agriculture and it is an ideal instrument for education departments.
MP20 Polarizing Microscope is a kind of essential instrument for studying and identifying the materials with double refraction characteristics, by using polarizing feature. This microscope is widely used in many fields, such as observation of crystalline inclusions, muscle tissue, nerve tissue, plant fiber and other structural details of the teeth, bone, and living cells, as well as analysis of drug composition and properties. Furthermore, in the field of inorganic chemistry, the fine structure of crystallization conditions of various kinds of salts which cannot be seen in natural light can be observation through polarizing microscope.
MZ62 series zoom stereo microscope has high-quality optical system design, showing excellent resolution and true color, body and parts are ergonomic and durable. It has transmitted light and reflected light with LED illumination, the reflected lighting angle can be moved by user needs. High eyepoint eyepiece with ±5° adjustable is comfortable for long time observation, head support 50%/50% light division to achieve view image on PC and eyepiece synchronise. The microscope is ideal for high-precision 3D observation of stereoscopic objects such as electronic components, plant, insect, sand and other small objects, it is widely used for routine biomedical tests, scientific research and industrial inspections.
