Spesifikasi:

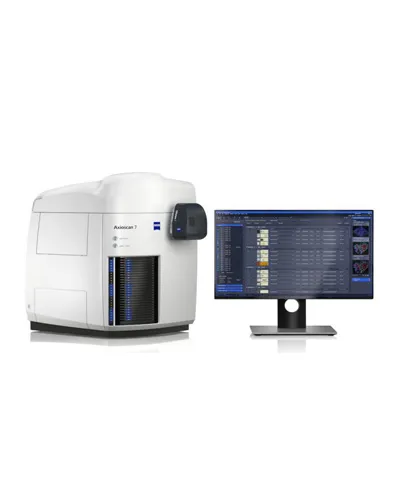

Axioscan 7 (brightfield): Approx. 695 mm × 579 mm × 813 mm
Axioscan 7 (brightfield and fluorescence with Colibri 7): Approx. 912 mm × 579 mm × 813 mm
Axioscan 7 (brightfield, 12 slides): Approx. 100 kg
Axioscan 7 (brightfield and fluorescence with Colibri 7 and 100 slides): Approx. 115 kg
Permissible ambient temperature: –35 °C to +60 °C
Permissible ambient temperature: –10 °C to +55 °C
Permissible relative humidity (without condensation): Max. 90% at 55 °C
Permissible ambient temperature: +10 °C to +30 °C (with X-Cite Xylis: +15 °C to +30 °C)
Permissible relative humidity: Max. 75% at 30 °C
Highest permitted altitude of use: Max. 2000 m
Atmospheric pressure: 800 hPa to 1060 hPa
Degree of pollution: 2
Operational area: Closed rooms
Protection class: I
Electrical safety: Conforming to DIN EN 61010-1 (IEC 61010-1), DIN EN 61010-2-101 (IEC 61010-1 and IEC 61010-2-101) in CSA and UL regulations
Overvoltage category: II
RFI suppression: Conforming to EN 55011 class A
Noise immunity: Conforming to DIN EN 61326-1 and DIN EN 61326-2-6
Input voltage, basic unit (Mains voltage does not need to be converted!): 100 V AC to 240 V AC
Power frequency: 50 / 60 Hz
Power consumption: Max. 260 VA
Fuses: 2× T 5.0A / H 250V, 5 × 20mm; 1× T 5.0A 250V 6 × 32mm
