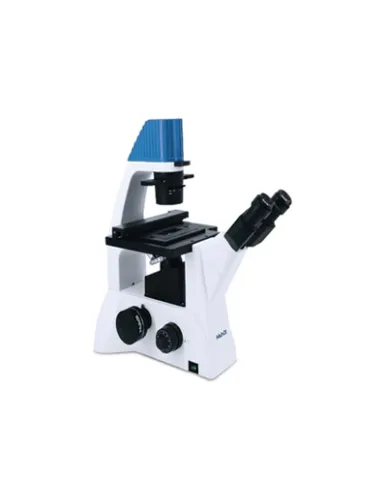

Inverted biological microscope MI52-N adopts excellent infinity optical system with long working distance plan objectives and wide field eyepiece. The body is compact, stable and rigidity which meets the requirement of anti-shock. The swing-in and swing-out type condenser system can achieve doing non-contaminated cultured cells observation in the high culture dish or the cylindrical flask.
Spesifikasi: Eyepiece: Wide field plan objective SWF10X/22, high eyepoint, one diopter adjustable Centering telescope Observation tube: 45˚ inclined, interpupillary distance 53~75mm Objectives: Phase contrast: Infinite long working distance plan achromat phase contrast objective Plan10X/0.25 PH,working distance 4.1mm Infinite long working distance plan achromat phase contrast objective Plan20X/0.45 PH,working distance 5.0mm Infinite long working distance plan achromat phase contrast objective Plan40X/0.58 PH,working distance 2.5mm Optional objectives: Bright field PLL 10X/0.25 Work distance:4.1mm Bright field PLL 20X/0.45 Work distance:5.0 mm Bright field PLL 40X/0.58 Work distance:2.5mm Bright field LACH 40X/0.58 Work distance:3.5mm
Eyepiece Wide field plan objective SWF10X/22, high eyepoint, one diopter adjustable Centering telescope Observation tube 45˚ inclined, interpupillary distance 53~75mm Objectives Bright field Long working distance plan objective M-UPLFLN4X/0.13, working distance 17.15mm Phase contrast Infinite long working distance plan achromat phase contrast objective Plan10X/0.25 PH,working distance 4.1mm Infinite long working distance plan achromat phase contrast objective Plan20X/0.45 PH,working distance 5.0mm Infinite long working distance plan achromat phase contrast objective Plan40X/0.58 PH,working distance 2.5mm Optional objectives Bright field PLL 10X/0.25 Work distance:4.1mm Bright field PLL 20X/0.45 Work distance:5.0 mm Bright field PLL 40X/0.58 Work distance:2.5mm Bright field LACH 40X/0.58 Work distance:3.5mm Phase contrast ring plate: 10X, 20X, 40X (20x and 40x in one unit) Focus system: Coaxial coarse/fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. Nosepiece: Quintuple nosepiece,ball bearing with anti fungus device Transmitted illumination system: 9W white LED lamp with brightness adjustable Push-pull type condenser, working distance 55mm Camera adapter: Internal set 0.75X C-mount Tool: Allen driver Dust cover
ZEISS Xradia CrystalCT® computed tomography platform uniquely augments this powerful imaging technique with the ability to reveal crystallographic grain microstructures, transforming the way polycrystalline materials (such as metals, additive manufacturing, ceramics, pharmaceuticals and others) can be studied, leading to newer and deeper insights for your materials research.
ZEISS Xradia Context® micro-computed tomography (microCT) is an easy-to-use system for analysis of all types of samples. A high-array detector enables high resolution of fine details even with relatively large imaging volumes. The system features a large field of view, rapid sample mounting and alignment, streamlined acquisition workflow and fast exposure and data reconstruction times.
In XRM, contrast depends on the material being imaged and the X-ray energy used. The Xradia Ultra family comprises of Xradia 800 Ultra, operating at 8 keV photon energy, and Xradia 810 Ultra, operating at 5.4 keV. In general, lower energy X-rays are absorbed more strongly and therefore will provide you with higher contrast for most materials. Thus, as long as transmission remains sufficient, you will experience resulting image quality and/or throughput that are greatly improved with Xradia 810 Ultra.
