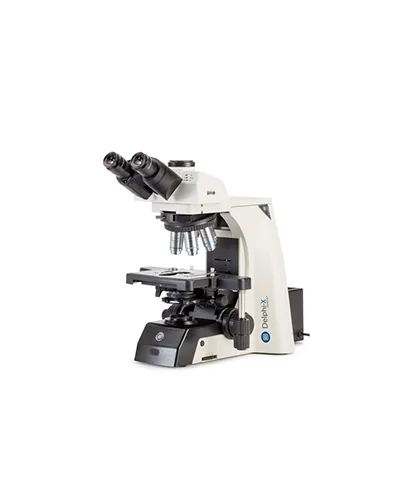

State-of-the-art microscopes for advanced Life Science fluorescence applications. The outstanding optical performance of the Delphi-X Observer™ makes it ideal for Life Science fluorescence applications where a high performance optical system is required. The larger 25 mm fields of view of the Super wide field eyepieces and the high numerical aperture of the Plan Fluarex 60 mm parafocal EIS objectives enable perfect observations and color rendering at high resolving power
Trinocular model Sextuple reversed nosepiece Super Wide field SWF 10x/25mm eyepieces, Ø 30 mm tubes Enhanced infinity corrected EIS optical system Ergonomic tilting head 60 mm parafocal Plan EIS objectives 60 mm parafocal Plan Semi-Apochromatic EIS objectives M 25 mm objective thread mounting 3 W NeoLED™ illumination 100 W halogen illumination Face-to-face dual head system M ultihead systems Dimensi : (h) 454 x (w) 260 x (d) 367 Weight : 18 kg
ZEISS Xradia CrystalCT® computed tomography platform uniquely augments this powerful imaging technique with the ability to reveal crystallographic grain microstructures, transforming the way polycrystalline materials (such as metals, additive manufacturing, ceramics, pharmaceuticals and others) can be studied, leading to newer and deeper insights for your materials research.
ZEISS Xradia Context® micro-computed tomography (microCT) is an easy-to-use system for analysis of all types of samples. A high-array detector enables high resolution of fine details even with relatively large imaging volumes. The system features a large field of view, rapid sample mounting and alignment, streamlined acquisition workflow and fast exposure and data reconstruction times.
In XRM, contrast depends on the material being imaged and the X-ray energy used. The Xradia Ultra family comprises of Xradia 800 Ultra, operating at 8 keV photon energy, and Xradia 810 Ultra, operating at 5.4 keV. In general, lower energy X-rays are absorbed more strongly and therefore will provide you with higher contrast for most materials. Thus, as long as transmission remains sufficient, you will experience resulting image quality and/or throughput that are greatly improved with Xradia 810 Ultra.
