Spesifikasi:
Core Optics: Illumination objective lens 13.3× / 0.4 (at 30° angle to cover glass) with static phase element
Detection objective lens 44.83× / 1.0 (at 60° angle to cover glass) with Alvarez manipulator
Meniscus lens; relay of core optics to cover slip of sample carrier
Autoimmersion: water, motorized dispenser
Illumination: Transmitted light: LED (white centered and side, red centered illumination) with oblique contrast for sample positioning and overview;
no Köhler Illumination, not specified for high quality imaging
Reflected light and epifluorescence: laser (488 nm, 561 nm, 640 nm) for beam adjustment and fluorescence imaging
Detection Modules: Hamamatsu ORCA-Fusion sCMOS camera; requires liquid cooling; up to two camera ports (right side port: camera 1, rear port: camera 2)
Pixel size: 6.5 µm; Max. pixel format: 2,048 × 2,048 (4.2 Megapixel); Bit depth: 16 bit; QE: up to 80% Image Acquisition Speed: Volume: 3 Vol/s @ approx. 300 µm × 50 µm × 20 µm
Plane: 400 frames/s @ approx. 300 µm × 20 µm
Up to 3 colors fast sequential (framewise or stackwise switch)
System PC / Workstation:
HP Z6 G4 Rev2 workstation
Chipset: Intel C622
Memory: max. 192 GB RAM
SSD: 1× 512 GB M.2 NVMe (for pagefile and operating system); 1× MTE662T2 M.2 PCIe NVMe 2 TB
Hard Drives: 2× 6 TB SATA 7,200 rpm (configured as 6 TB RAID 10 hard drive); increase capacity from 6 TB (RAID 10) to 12 TB (RAID 10)
Processor: Intel® Xeon® Gold 6234 (3.2 GHz, 24.75 MB cache, 8 cores)
Graphics Card: NVIDIA Quadro RTX6000 24 GB DB
Network Adapter: 2× 10GbE RJ45 (hp Z6); additional network adapter 2× 10GbE RJ45 (hp Z6) e.g. for connection of storage systems
Operating system: Windows 10 IoT Enterprise 2019 LTSC Embedded ×64

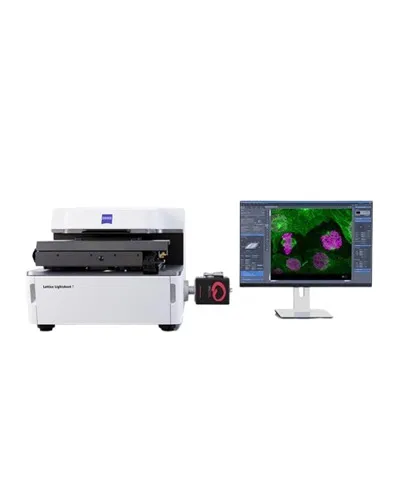

Main System Module Lightsheet: 7 600 mm × 425 mm × 380 mm 48 kg
Component Rack (houses Laser module,Power supply unit & Stage Motion Controller):
550 mm × 740 mm × 600 mm 56 kg
System Table for main System Module Lattice Lightsheet 7, Level regulated:
900 mm × 750 mm × 830 mm 130 kg
Penetration Depth: Up to 200 µm
Field of View (FOV): x: 300 µm; y: defined by scan range
Spectral Range of Detection: 490 nm – 740 nm
