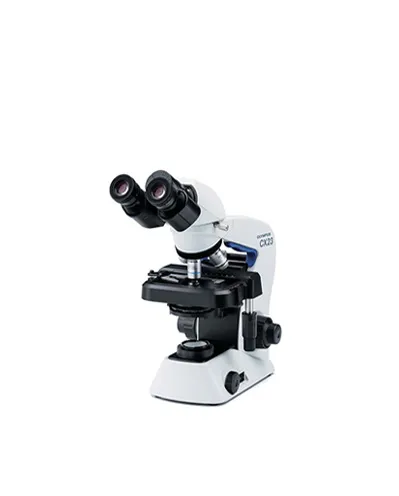

The Olympus CX23 microscope is an economically priced Olympus microscope that achieves high optical and mechanical quality standards for educational applications. The binocular head is tilted and equipped with an Olympus WF eyepiece up to 10x. Simple enough for even first-time microscope users to master, the CX23 achieves high standards of optical and mechanical quality for educational microscopes.
Model: CX23LEDRF (S1/S2) CX23RTFS2 Body: Aluminum die-cast metal frame, protective plastic covering Optical System: Infinity Optical System Illumination System: Built-in transmited illumination system LED power consumption: 0.5 W (nominal value) Focusing: Stage height movement Coarse movement stroke: 15 mm Coarse adjustment limit stopper Torque adjustment for coarse adjustment knob Fine focus knob (minimum adjutsment gradations: 2.5 μm) Revolving: Nosepiece Fixed quadruple nosepiece with inward tilt Stage: Wire movement mechanical fixed stage Size (W × D): 174 mm × 89 mm Traveling range (X × Y): 76 mm × 30 mm Specimen holder Specimen position scale Observation Tube: Type : Binocular, anti-fungal Trinocular, anti-fungal Eyepiece : (anti-fungal) 10X Field Number (FN): 20 15X Eyepiece (FN): 12 (optional) Tube inclination : 30° Light path selector : None Eyepiece/Camera port = 100/0 or 0/100 Interpupillary distance adjusting range : 48 – 75 mm Eyepoint adjustment : 370.0 – 432.9 mm Condenser: Abbe condenser NA 1.25 with oil immersion Built-in aperture iris diaphragm Objectives: Plan Achromat, anti-fungal 4X NA 0.1 W.D. 27.8 mm 10X NA 0.25 W.D. 8.0 mm 20X NA 0.4 W.D. 2.5 mm (optional) 40X NA 0.65 W.D. 0.6 mm 100XOil NA 1.25 W.D. 0.13 mm (CX23LEDRFS1 built-in, CX23LEDRFS2/RTFS2 optional) Optional Accessories: Reflection mirror (CH20-MM), eyepiece micrometer Dust cover, darkfield stop (CH2-DS+CH2-FH) Field Diaphragm (CX23-FS)* Dedicated wooden case (CH20-WB2) Reflection mirror (CH20-MM), eyepiece micrometer Dust cover, darkfield filter (CH2-DS) Dimensions: (W × D × H) 198 mm × 398 mm × 386 mm 198 mm × 398 mm × 430 mm Weight: Approximately 5.9 kg Approximately 6.5 kg Rated Voltage/Electric Current: AC 100 – 240 V 50/60 Hz 0.4 A Power Consumption: Less than 2 W
The Olympus CX23 microscope is an economically priced Olympus microscope that achieves high optical and mechanical quality standards for educational applications. The binocular head is tilted and equipped with an Olympus WF eyepiece up to 10x. Simple enough for even first-time microscope users to master, the CX23 achieves high standards of optical and mechanical quality for educational microscopes.
CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
CX43 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
