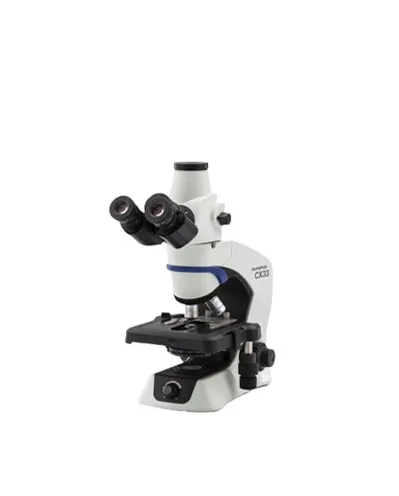

CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
Observation Method Brightfield ✓ Darkfield ✓ Illuminator: Transmitted Köhler Illuminator: LED Lamp ✓ Focus: Focusing Mechanism: Stage Focus ✓ Coarse Handle Stroke: 15 mm Features: Coarse adjustment limit stopper Torque adjustment for coarse adjustment knob Revolving Nosepiece: Manual: Standard (4 positions) ✓ Stage: Manual: Manual Stages with Right-Hand Control: Built-in X: 76 mm, Y: 52 mm Condenser: Manual: Abbe Conenser: NA 1.25 (4X–100X) Observation Tubes: Standard (FN20): Trinocular: ✓ Tube Inclination Angle: 30° Trinocular Tube Light Path Selection (Camera : Observation): 0%:100%, 100%:0% Interpupillary Distance Adjustment: 48–75 mm Dimensions (W × D × H) : 211 mm × 397 mm × 430 mm (8.3 in. × 15.6 in. × 17 in.) Weight: Approx. 7.0 kg (15.4 lb) Objectives: Plan Achromat 4X NA 0.1 W.D. 27.8 mm 10X NA 0.25 W.D. 8.0 mm 20X NA 0.4 W.D. 2.5 mm (optional) 40X NA 0.65 W.D. 0.6 mm 100XOil NA 1.25 W.D. 0.13 mm (optional)
The Olympus CX23 microscope is an economically priced Olympus microscope that achieves high optical and mechanical quality standards for educational applications. The binocular head is tilted and equipped with an Olympus WF eyepiece up to 10x. Simple enough for even first-time microscope users to master, the CX23 achieves high standards of optical and mechanical quality for educational microscopes.
CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
CX43 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
