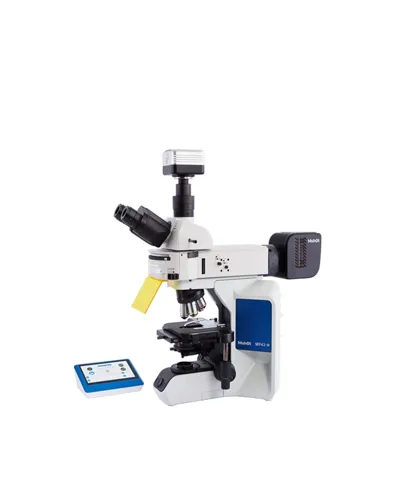

MF43-N is a research-grade fluorescence microscope latest developed by Mshot with equivalent performance to Olympus BX43. The microscope adopts excellent quality infinity optical system and maximum fit to six fluorescence filter cubes. Meanwhile, the microscope can expand to multiple observation methods of phase contrast, dark field, polarizing and DIC observation.
Spesifikasi: Type: optical Applications: laboratory, medical, clinical Microscope head: trinocular Objectives: Infinity plan semi-apochromatic fluorescence objective M-UPLFLN 4X/0.13 ;WD:17.15mm Infinity plan semi-apochromatic fluorescence objective M-UPLFLN 10X/0.3 ;WD:7.68mm Infinity plan semi-apochromatic fluorescence objective M-UPLFLN 40X/0.75 ;WD:0.78mm Infinity plan semi-apochromatic fluorescence objective M-UPLFLN 100XO/1.30 ;WD:0.15mm Quality of the objectives: semi-apochromat Observation technique: fluorescence, FISH, FRET, phase contrast, dark field, dark field, 3D, polarizing, DIC Configuration: benchtop Light source: LED Magnification: 4 unit, 10 unit, 40 unit, 100 unit Resolution: Max.: 740 nm Min.: 350 nm Power line: According to user’s country electrical requirement Screw driver: M3.0 hexagon screw driver Accessories: Immersion oil Dust cove: MSHOT special dust cover Optional adapters: 1X/0.5X/0.75X C-mount adapter
ZEISS Xradia CrystalCT® computed tomography platform uniquely augments this powerful imaging technique with the ability to reveal crystallographic grain microstructures, transforming the way polycrystalline materials (such as metals, additive manufacturing, ceramics, pharmaceuticals and others) can be studied, leading to newer and deeper insights for your materials research.
ZEISS Xradia Context® micro-computed tomography (microCT) is an easy-to-use system for analysis of all types of samples. A high-array detector enables high resolution of fine details even with relatively large imaging volumes. The system features a large field of view, rapid sample mounting and alignment, streamlined acquisition workflow and fast exposure and data reconstruction times.
In XRM, contrast depends on the material being imaged and the X-ray energy used. The Xradia Ultra family comprises of Xradia 800 Ultra, operating at 8 keV photon energy, and Xradia 810 Ultra, operating at 5.4 keV. In general, lower energy X-rays are absorbed more strongly and therefore will provide you with higher contrast for most materials. Thus, as long as transmission remains sufficient, you will experience resulting image quality and/or throughput that are greatly improved with Xradia 810 Ultra.
