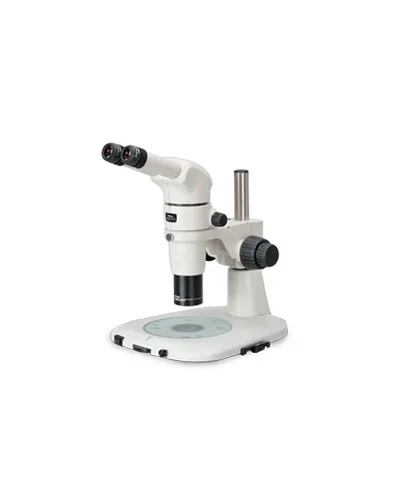

Nikon SMZ1270 isa ll-new stereomicroscope delivering incredible image sharpness throughout a wide magnification range. To meet and exceed the needs to observe minute structures while covering a wide field of view in the biological fields where biological body screening, injection and observation are conducted every day, the SMZ1270 was developed to feature expanded zoom ratio, high operability, and excellent optical performance. With a best-in-class zoom ratio of 12.7x (0.63x-8x), the SMZ1270 covers an even greater magnification range than previous models. At the lowest magnification, the actual field of view will go up to 35mm*, allowing easy observation of an entire 35mm petri dish.
Optical System : Parallel-optics type (zooming type) Zoom Ratio : 12.7:1 Zoom Range : 0.63 – 8x (0.63/1/2/3/4/6/8x stops) Total Magnification : 3.15 – 480x (depending on eyepiece and objectives) (with coaxial episcopic illuminator: 15 – 540x) Tubes : Eyepiece inclination: 20° (P-B Binocular Tube) / 15° (P-TL100 Trinocular Tube) / 0°-30° (P-TERG100 Trinocular Tilting Tube, P-TERG50 Trinocular Tilting Tube) Eyepieces C-W10xB (F.N. 22), C-W15x (F.N. 16), C-W20x (F.N. 12.5), C-W30x (F.N. 7) Objectives : Plan Apo 0.5x/WF, Plan Apo 0.75x/WF, Plan Apo 1x/WF, ED Plan 1.5x/WF, ED Plan 2x/WF Working Distance : 70mm(with Plan Apo 1x/WF) Weight (approx.) : 9.8 kg (with P-B Binocular Tube + P-DSL32 LED Diascopic Illumination Stand)
The Olympus CX23 microscope is an economically priced Olympus microscope that achieves high optical and mechanical quality standards for educational applications. The binocular head is tilted and equipped with an Olympus WF eyepiece up to 10x. Simple enough for even first-time microscope users to master, the CX23 achieves high standards of optical and mechanical quality for educational microscopes.
CX33 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
CX43 biological microscopes enable you to remain comfortable during long periods of routine observation. The microscope frame conforms to your hands, and the location of the control knobs maximizes ergonomics to improve work efficiency. With minimal movement, you can quickly set a specimen with one hand, while adjusting the focus and operating the stage with the other hand. The microscopes can also feature an optional camera port for digital imaging.
