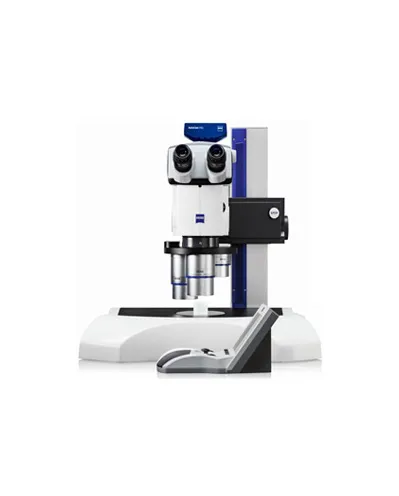

Enjoy the flexibility of a 20:1 zoom range to go from largest overview into the smallest details. Get brilliant three-dimensional images with exceptional depth perception. Choose your optimal magnification or move to user-defined zoom positions with eZoom. Reproduce zoom positions with an accuracy of more than 99 percent! Use the SYCOP touch panel to control magnification, focus, contrast, and brightness with ease.
Spesifikasi: Stand model: StereoDiscovery [upright] Microscope controls: Motorized zoom and focus control Manual stage control (x, y)objective nosepiece, reflector turret, condenser and light path control Software: Zen Capabilities: Epifluorescence imaging Brightfield Objectives: 1x, PlanApo S FWD (81mm) 1.5x, PlanApo S FWD (30mm) 3.5x PlanApo S mono FWD (16mm) Filters: Position 1: GFP Wideband, Excitation D480/30, Emission E515LP Position 2: CY3 Narrowband, Excitation 545/30, Emission 610/75 Position 3: CY3 Wideband, Excitation 535/50, Emission 610/75 Position 4: CY5 PentaFlurar Filter Excitation 640/30, Emission 690/50 nm Light sources: HXP120 Fiber Optic CI ECO (snake light) SCHOTT Under lighting Detectors: AxioCam Hrc.3 (colour) Location: RGN 3140
ZEISS Xradia CrystalCT® computed tomography platform uniquely augments this powerful imaging technique with the ability to reveal crystallographic grain microstructures, transforming the way polycrystalline materials (such as metals, additive manufacturing, ceramics, pharmaceuticals and others) can be studied, leading to newer and deeper insights for your materials research.
ZEISS Xradia Context® micro-computed tomography (microCT) is an easy-to-use system for analysis of all types of samples. A high-array detector enables high resolution of fine details even with relatively large imaging volumes. The system features a large field of view, rapid sample mounting and alignment, streamlined acquisition workflow and fast exposure and data reconstruction times.
In XRM, contrast depends on the material being imaged and the X-ray energy used. The Xradia Ultra family comprises of Xradia 800 Ultra, operating at 8 keV photon energy, and Xradia 810 Ultra, operating at 5.4 keV. In general, lower energy X-rays are absorbed more strongly and therefore will provide you with higher contrast for most materials. Thus, as long as transmission remains sufficient, you will experience resulting image quality and/or throughput that are greatly improved with Xradia 810 Ultra.
