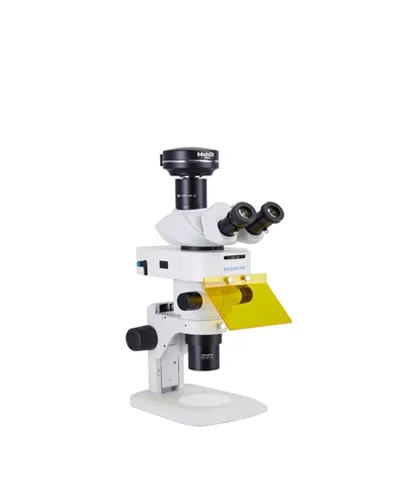

Stereo fluorescence microscope MZX81 is consist of Olympus SZX7 stereo microscope and epi fluorescent attachment, the epi fluorescent attachment is equipped with high bright LED light source. On the basis of Olympus SZX7 stereo microscope excellent optical performance and high brightness fluorescent illumination, the MZX81 microscope provides a superior fluorescent observation performance.
Spesifikasi: Microscope body: Galileo optical system Zoom drive: Horizontal knob system Lead-free Zoom body: Zoom radio value 7:1 (0.8x to 5.6), magnification range 8X-56X Zoom magnification indication 0.8, 1, 1.25, 1.6, 2, 2.5, 3.2, 4, 5, 5.6 Observation: Trinocular tube with 30°inclination Light path 2 selections: 100% for eyepiece, 100% for photographing Wide field eyepiece 10X, FN22 Interpupillary distance adjustable range: 50 to 76 mm Lead-free Objectives: Infinity plan achromat objective 1X, N.A 0.1, working distance 90mm, field of view 27.5-3.9mm Optional objective: 2X, working distance 33.5mm,field of view 13.8-1.9mm Epi-fluorescence illumination system: Turret accommodates maximum triple filter block cubes Blue and Green filters Blue excitation group: 6W LED lighting Green excitation group: 12W LED lighting Input power DC 12V 2A Stand: Olympus SZ2-ST standard stand Travel distance 80mm×50mm, 1mm per scale, accuracy 0.1mm Focus: Knob rotation tension adjustment, Focusing stroke 120 mm
ZEISS Xradia CrystalCT® computed tomography platform uniquely augments this powerful imaging technique with the ability to reveal crystallographic grain microstructures, transforming the way polycrystalline materials (such as metals, additive manufacturing, ceramics, pharmaceuticals and others) can be studied, leading to newer and deeper insights for your materials research.
ZEISS Xradia Context® micro-computed tomography (microCT) is an easy-to-use system for analysis of all types of samples. A high-array detector enables high resolution of fine details even with relatively large imaging volumes. The system features a large field of view, rapid sample mounting and alignment, streamlined acquisition workflow and fast exposure and data reconstruction times.
In XRM, contrast depends on the material being imaged and the X-ray energy used. The Xradia Ultra family comprises of Xradia 800 Ultra, operating at 8 keV photon energy, and Xradia 810 Ultra, operating at 5.4 keV. In general, lower energy X-rays are absorbed more strongly and therefore will provide you with higher contrast for most materials. Thus, as long as transmission remains sufficient, you will experience resulting image quality and/or throughput that are greatly improved with Xradia 810 Ultra.
