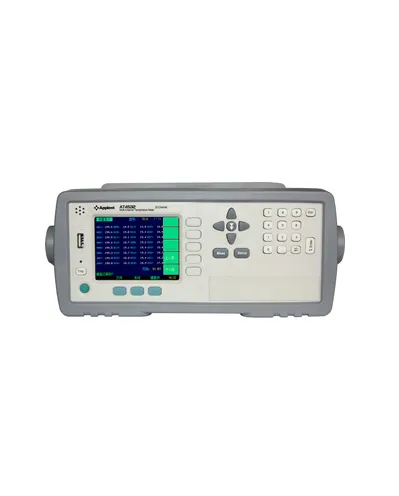

Multi Channel Temperature Meter - Applent AT4532

Category :
Multi Channel Temperature Meter

Price :

Rp.32.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The AT4532 is easy to set up and reconfigure from the front panel. AT4332 has bi-directional communication via RS-232C, which enables control from a host computer. The AT4532 offer easy portability along with applent's built-in signal conditioning and Universal Input Module, at a price to fit your budget. AT4532 is tested to stringent shock and vibration standards. AT4532 sturdy metal chassis effectively shields against electromagnetic interference, maintaining high measurement accuracy on low level signals. The analog circuitry is also isolated from the digital circuitry.

Graduation : thermocouple J/K/T/E/S/N/B/R
Accuracy : 0.2%+1℃
Range : -200ºC to 1300ºC varying depend on graduation
Resolution : 0.1℃
Channels : 32 channels; Can be expanded to 128 channels
Speed : Fast 100ms/channel, Medium 500ms/channel, Low 1s/channel
Correction : Error correct for each channel
Comparator : High/low beep Individual setting high/low value for each channel
Interface : RS232C interface U-disc interface USB communication interface, ATS45 data acquisition software
Cold Junction : Accuracy：0.5℃, TFT-LCD True-color LCD display，broken thermocouple checking function Voltage：85VAC～260VAC Frequency：50Hz/60Hz Power：10VA
Dimension : 216mm(Width)x88mm(Height)x300mm(Depth) - 3kg
Accesories : AT4532 K thermocouple 32 teams(2m/team), ATS45 data acquistion software
