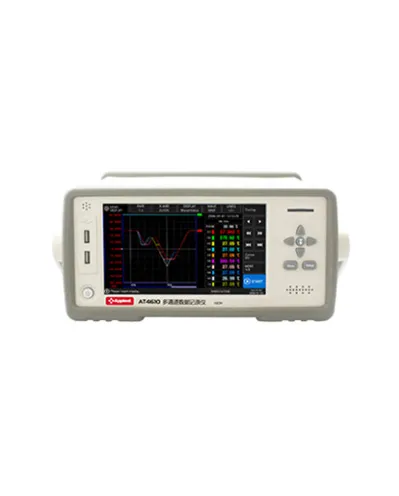

Multi Channel Temperature Meter - Applent AT4610

Category :
Multi Channel Temperature Meter

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

AT4610 adopts high-performance ARM microprocessor and FPGA, it can record data with real-time and high speed. It is 7 inches highlight true color LCD display screen, all touch panel assist secondary function key to operate, it uses Applent ATOS Rev.7 operating system, and it is more easy to use and more intelligent. Real-time display measured data and graph brings you newer experience. New design AT46 series data logger adopts real-time FPGA circuit, breaks the limitation of sampling rate, coordinates high-efficient、high precise analog circuit, realize high precise and super high sampling rate, the resolution of measured temperature reaches 0.01°C, sampling rate of single channel <1ms, it only takes 10ms to complete measurement of 10 channels.

Graduation : Thermocouple J/K/T/E/S/N/B/R Thermal resistance: PT100/CU50 DCV DCR
Accuracy : 0.2%
Range : -270ºC to 1820ºC (Resolution 0.01℃, varying depend on graduation, Voltage：0.0005mV~100.000V, Resistance：0.001~200.00
Resolution : 0.01
Channels : 10 channels
Speed : 1ms/channel
Correction : Error correct for each channel
Comparator : High/low beep Individual setting high/low value for each channel, beep signal can be output by HANDLER
Interface : RS232C; USB-disk; SD card; USB communication; LAN interface; HANDLER interface
ATS46 data acquisition software
Cold Junction : Accuracy: 0.1℃, 7 inches TFT-LCD with touch screen, true-color LCD display，broken thermocouple check function, Voltage：85VAC～260VAC Frequency：50Hz/60Hz Power：30VA
Dimension : 290mm(Width)x130mm(Height)x360mm(Depth) - 5kg
Accesories : K type thermocouple 10 pcs (2m/pc) ATS46 data acquisition software
