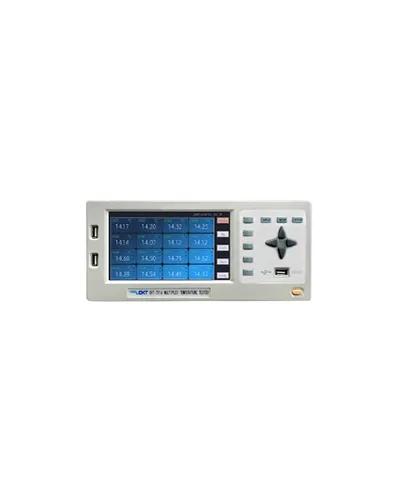

CKT7000 series data recorder adopt high-performance ARM microprocessor, it is 7 inches touch screen, can independently and blend collect the data of multi-channel temperature, voltage, resistance and humidity. High/low beep function and communication transmission. Can be extended to 64 channels, and is compatible with various temperature sensors. With 10ms quick respond and stable data. support RS-232 and USB communication, realize data acquisition, analysis and print through the standard computer software. Support network communication and USB disk storage and store real-time sampling data. The users can adjust data for each channel independently
Channel : 24 Parameters thermocouple :J/K/T/E/S/N/B/R/W Thermal resistance : PT100/CU50 Accuracy : 0.2C ±2 digits Measurement range : Temperature : -270 C - 1768 C Voltage : 0.0005mV - 100.000V Humidity : 0% RH - 100% RH Resistance :0.001 - 200.00 Speed : 10ms/channel Correction : Error correct for each channel Comparator : High/low beep Individual setting high/low value for each channel Interface : RS232C; U-disk interface Accessory : CKT7000 data acquisition software Protection : Max 300 VAC/DC Power Supply Voltage : 65VAC~240VAC DC 24V lithium battery powered (optional) Dimension : 288mm(Width)x288mm(Height)x200mm(Depth) Weight : 5 kg
