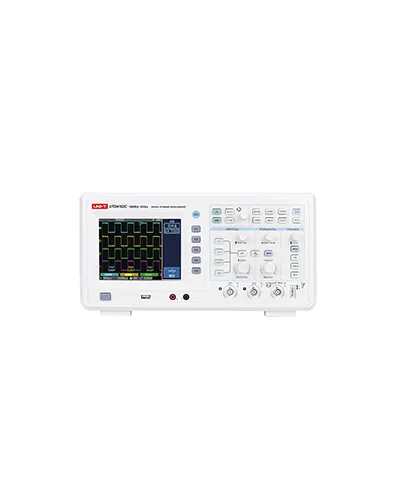

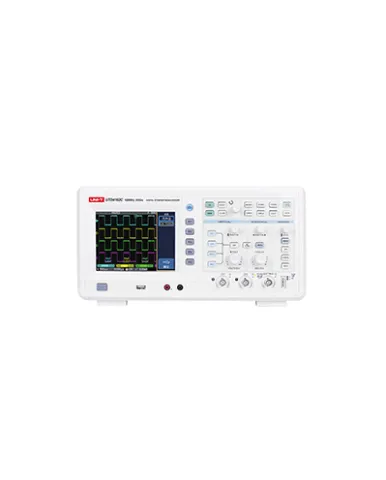

Digital Storage Oscilloscope – UNIT UTD4102C

Category :
Oscilloscope

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

UTD4000C series is a cost-effective industrial type digital storage oscilloscope, combines with digital oscilloscope, logic analyzer, digital multimeter, and digital frequency counter. It has unique dual time-base function, perfect waveform detail testing and analysis capability

Bandwidth : 100MHz
Channels : 2
Sampling rate : 2GS/s
Rise time : ≤3.5ns
Memory depth : 24kpts
Waveform capture rate : ≥2,000wfms/s
Vertical scale (V/div) : 1mV/div~10V/div
Time base scale (s/div) : 5ns/div~50s/div
Storage methods : Setup, wave, bitmap, CSV
Trigger types : Edge, pulse width, video, slope, alternate, LA
Interfaces : USB Device, USB Host, DMM, Pass/Fail
DC voltage (V) : 400mV/4V/40V/400V
AC voltage (V) : 4V/40V/400V
DC current (A)(external convertor) : 4mA/40mA/400mA/4A
Resistance (Ω) : 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ
Display count : 4000
Auto range : √
Power : 100-240V AC, 50Hz/60Hz
Display : 5.7-inch TFT LCD, QGVA (320 x 240)
Product color : White and grey
Product size : 337mm x 190mm x 180mm
Product net weight : 3.8kg
