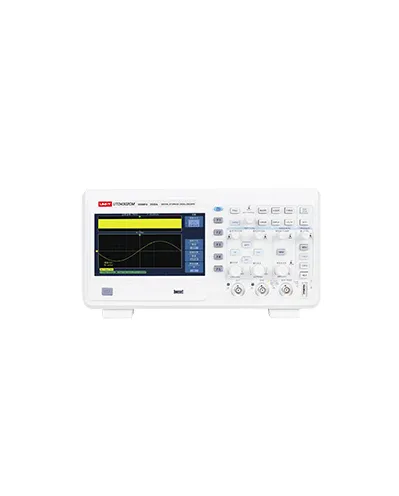

Digital Storage Oscilloscope – UNIT UTD4302CM

Category :
Oscilloscope

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

UTD4000M series is a traditional industrial bench type digital storage oscilloscope with 7-inch wide screen, whose memory depth is up to 24Mpts per channel (dual channels open at the same time), waveform acquisition rate is up to 150,000wfms/s. Its stable and reliable performance fully meets the needs of scientific research and industrial basic test and measurements

Bandwidth : 300MHz
Channels : 2
Sampling rate : 2GS/s
Rise time : ≤1.2ns
Memory depth : 24Mpts (each channel)
Waveform capture rate : ≥150,000wfms/s
Vertical scale (V/div) : 2mV/div~5V/div
Time base scale (s/div) : 1ns~50s/div
Storage methods : Setup, wave, bitmap, CSV
Trigger types : Edge, pulse width, video, slope, alternate
Interfaces : USB Device, USB Host, Pass/Fail
Power : 100~240V AC, 50Hz/60Hz
Display : 7 inches TFT LCD, WVGA (800 x 480)
Product color : White and grey
Product size : 337mm x 190mm x 180mm
Standard accessories : Probe x 2 (1x, 10x switchable), USB interface cable, power cord, PC software CD
Product net weight : 3.8kg
