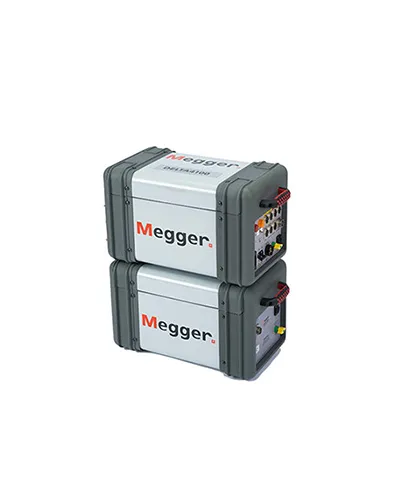

DELTA4110 insulation diagnostic system (DELTA4100 control unit and DELTA4010 HV unit)
Input Power : 90 - 264 V 45 - 66 Hz, 16 A max, No loss in performance when used with portable generator
Output Voltage : 0 to 12 kV, continuously adjustable
Test Frequency Range :
45-70 Hz (12 kV)
15-400 Hz (4 kV)
1-505 Hz (250V)
0.0001 Hz maximum resolution
Output Power : 3.6 kVA
Output Current :
300 mA (4 minutes)
200 mA (30 minutes)
100 mA (continuous)
The power supply capacity can be expanded to 4 A at 12 kV using the
optional Resonating Inductor, (Cat. No. 670600-1).
Measuring Ranges :
Voltage : 25 V to 12 kV, 1 V resolution
Current : 0 to 5 Amps, 0.1 μA maximum resolution. The measurement can be corrected to either 2.5 kV or 10 kV equivalents.
Watt Loss : 0 to 2 kW, actual power, 0 to 100 kW when corrected to 10 kV equivalent. 0.1 mW maximum resolution. The measurement can be corrected to either 2.5 kV or 10 kV equivalents.
Accuracy :
Voltage ±(1% of reading + 1 digit)
Current ±(1% of reading + 1 digit)
Capacitance ±(0.5% of reading + 1 pF)
Inductance ±(0.5% of reading + 1 mH)
Power Factor and Dissipation Factor ±(0.5% of reading + 0.02%)
Watt Loss ±(1% of reading + 1mW)
Frequency ±0.005% of reading
Dimensions :
Control unit : 290 x 290 x 460 mm (11 x 11 x 18 in.)
High voltage Unit: 290 x 290 x 460 mm (11 x 11 x 18 in.)
*Does not include handles
Weight : 14 kg (31 lbs)
