CAT IV Insulation Testers - Megger MIT400-2 Series

Category :
Power Meter and Process Calibrator

Price :

Rp.19.700.000

Chat Us

DESCRIPTION
SPECIFICATION

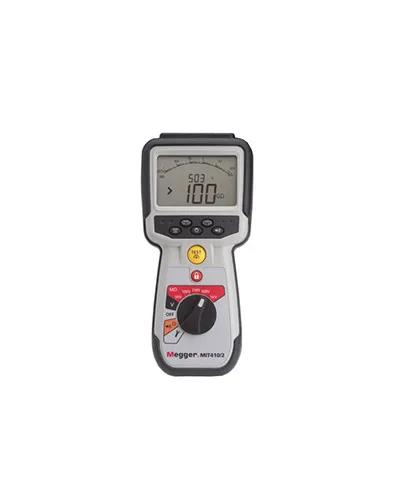

The MIT400 mk2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc. Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%. A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application specific test voltages are required that do not appear in the standard ranges.

The range consists of four instruments:
MIT400/2 250 V, 500 V and 1000 V
MIT410/2 50 V, 100 V, 250 V, 500 V and 1000 V + PI, DAR
MIT420/2 50 V, 100 V, 250 V, 500 V and 1000 V + PI, DAR + VAR (New) and result storage
MIT430/2 50 V, 100 V, 250 V, 500 V and 1000 V + PI + DAR + VAR (New) + Bluetooth® download
Test voltages (New) : 50 V, 100 V, 250 V, 500 V and 1000 V
Variable test voltage : Adjustable test voltage from 10 V to 1000 V
Voltage accuracy : The output test voltage is maintained within the tolerance or
-0% +2%
Stabilised test voltage : The voltage is feedback controlled to ensure it remains within specification throughout the full test range
Measurement voltage display : The measurement voltage is displayed during the test
