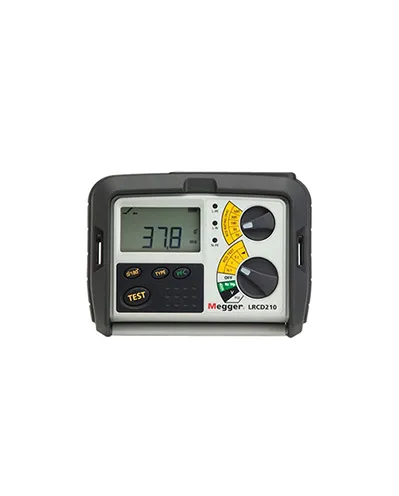

Combined Loop and RCD Testers - Megger LRCD210

Category :
Power Meter and Process Calibrator

Price :

Rp.22.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The Megger LRCD210 series is the latest generation of combined non-tripping loop tester and RCD test instruments that provide simple, affordable and flexible test tools for electrical contractors testing energised circuits. LRCD210 provides three phase safe non-trip loop testing and 1/2I, I, and 5I RCD testing for standard, selective and DC RCDs. Suitable for domestic installers testing to UK Part P requirements

Voltage measurement : 0 V - 500 V
Accuracy : ±2% ±2 digits
Frequency measurement : (LRCD200,210,220)
Range : 25Hz to 450Hz
Accuracy : 25.0Hz to 199.9Hz ±0.1Hz & 200Hz to 450Hz ±1Hz
Phase rotation indicator : (LRCD220 only)
Frequency : 45Hz to 65Hz
Loop testing : Loop ranges (to EN 61557-3)
Supply :
LRCD200/210 : 200V - 280 V 45Hz to 65Hz
Nominal test current : 15 mA
Loop Accuracy :
0.01 ½ - 9.99 ½ (±5% ±0.03 ½)
10.0 ½ - 99.9 ½ (±5% ±0.5 ½)
100 ½ - 999 ½ (±5% ±5 ½)
1.00 k½ - 2.00 k½ (±5% ±30 ½)
Supply : 100 V - 480 V
Nominal Test Current : 15 mA to 2.4 A
Battery : 8 x 1,5 V cells IEC LR6 type (AA alkaline).
Rechargeable : 8 x 1.2V NiCd or NiMH cells.
Battery Life : 2000 consecutive tests
Weight : All units 980gms
Dimensions : All units 203 x 148 x 78 mm
