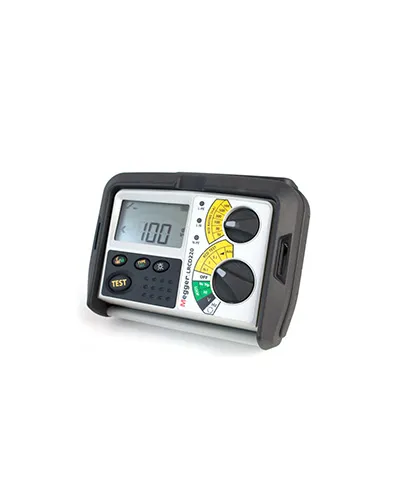

Combined Loop and RCD Testers - Megger LRCD220

Category :
Power Meter and Process Calibrator

Price :

Rp.25.400.000

Chat Us

DESCRIPTION
SPECIFICATION

The Megger LRCD220 series is the latest generation of combined non-tripping loop tester and RCD test instruments that provide simple, affordable and flexible test tools for electrical contractors testing energised circuits. As the LRCD210 with the addition of 2 wire fast testing, plus phase to phase and phase to earth measurement. Both instruments will not trip RCDs rated at 30 mA or greater during loop testing, even electronic RCDs

Voltage measurement : (LRCD200, 210, 220): 0 V - 500 V
Accuracy : ±2% ±2 digits
Frequency measurement : (LRCD200,210,220)
Range : 25Hz to 450Hz
Accuracy : 25.0Hz to 199.9Hz ±0.1Hz & 200Hz to 450Hz ±1Hz
Phase rotation indicator : (LRCD220 only)
Frequency : 45Hz to 65Hz
Loop testing : Loop ranges (to EN 61557-3)
Supply : 100V - 280 V 45Hz to 65Hz
Nominal test current : 15 mA
Loop Accuracy :
0.01 ½ - 9.99 ½ (±5% ±0.03 ½)
10.0 ½ - 99.9 ½ (±5% ±0.5 ½)
100 ½ - 999 ½ (±5% ±5 ½)
1.00 k½ - 2.00 k½ (±5% ±30 ½)
Supply : 100 V - 480 V
Nominal Test Current : 15 mA to 2.4 A
Battery : 8 x 1,5 V cells IEC LR6 type (AA alkaline).
Rechargeable : 8 x 1.2V NiCd or NiMH cells.
Battery Life : 2000 consecutive tests
Weight : All units 980gms
Dimensions : All units 203 x 148 x 78 mm
