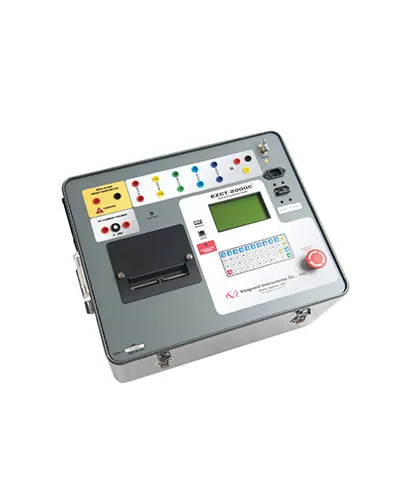

Current Transformer Test Set - Vanguard EZCT2000C

Category :
Power Meter and Process Calibrator

Price :

Rp.395.700.000

Chat Us

DESCRIPTION
SPECIFICATION

The EZCT-2000C is Vanguard’s third-generation microprocessor-based current transformer test set. Designed specifically for CT testing, the EZCT-2000C has the following outstanding features that can greatly increase productivity and save time during the commissioning stage : Performs CT excitation, current-ratio, polarity, and phase angle tests, measures insulation resistance and winding resistance of the CT secondary windings, Measures the CT’s load burden and standalone or computer-controlled via USB or Bluetooth wireless interface. The EZCT-2000C’s test leads can be connected to all the CT output terminals, and the complete CT test can be performed automatically without any operator intervention.

Type : portable current transformer test set
Measuring method : ANSI/IEEE C57.12.90 and ANSI/IEEE C57.13.1 standards
Output test voltages : 0 ¬ 50 Vac @ 10A max; 0 ¬ 300 Vac @ 10A max; 0 ¬ 500 Vac @ 5A max; 0 ¬ 1200 Vac @ 1.2A max ; 0 ¬ 2000 Vac @ 1A max
Resistance reading range : 100 micro-ohms ¬ 30 ohms; accuracy: 2% of reading ±1 count, ±10 micro-ohms
Voltage reading range : 0 ¬ 2,200 Vac & accuracy: ±1.0% of reading, ±1 volt
Input power : 100 ¬ 120 Vac or 200 ¬ 240 Vac (factory pre-set), 50/60 Hz
Current ratio range : 0.8 ¬ 999: ±0.1%, 1000 ¬ 1999: ±0.3%, 2,000 ¬ 5,000: ±1%
Current source : 1 ¬ 20A @ 0 ¬ 15 Vac; displays test current and current on-time
Insulation resistance test : 2 M-ohms ¬ 500 M-ohms; accuracy: 3% of reading; 500 ¬ 1,000 Vdc test voltage
Current reading range : 0 ¬ 10 A, accuracy: ±1.0% of reading, ±0.02A
Phase angle measurement : 0 ¬ 360 degrees & accuracy: ±1.0 degree
Temperature operating : -10°C to +50°C (+15°F to +122°F)
Temperature storage : -30°C to +70°C (-22°F to +158°F)
Dimensions : 19"W x 13"H x 16"D (48.3 cm x 33cm x 40.1 cm)
Weight : 73 lbs. (33.1 Kg)
