Current Transformer Test Set - Vanguard EZCT2KA

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

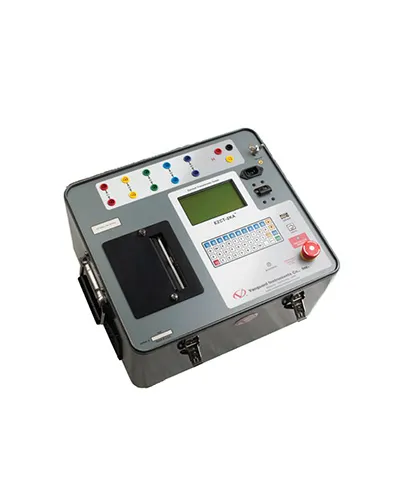

The EZCT-2KA is Vanguard’s third-generation microprocessor-based current transformer test set. The EZCT-2KA can perform the current transformer (CT) excitation test, measure the CT winding resistance and CT current-ratio automatically. All of the EZCT-2KA’s test leads can be connected to the CT output terminals (X1, X2, X3, X4 and X5), eliminating the need for lead switching during testing. Test voltage output is automatically raised and lowered by the EZCT-2KA without any operator intervention. With up to 2000 Vac excitation test voltage available, the EZCT-2KA can easily perform excitation tests on very large CT’s.

Type : portable current-transformer test set
Measurement method : IEC 60044-1, IEC 61869, ANSI/IEEE C57.13.1, and ANSI/IEEE C57.12.90
Current Range Ratio :
0.8 – 999: ±0.1%,
1000 – 1999: ±0.3%,
2,000 – 4,999: ±1%,
5,000 – 10,000: ±1.5%
Output test voltages :
0 – 50 Vac @ 10A max,
0 – 300 Vac @ 8A max,
0 – 500 Vac @ 5A max,
0 – 1,200 Vac @ 2A max,
0 – 2,000 Vac @ 1.2A max
Resistance measurement range : 100 µΩ to 20 Ω; resolution: 1 µΩ
Resistance measurement accuracy : 100 µΩ – 1.99 Ω (2% of reading ±10 µΩ), 2 Ω – 20 Ω (1.5% of reading ±2 mΩ)
Voltage reading range : 0 – 2,200 Vac; accuracy: ±1.0% of reading, ±1 volt
Current reading range : 0 – 10 A; accuracy: ±1.0% of reading, ±0.02A
Phase angle measurement : 0 – 360 degrees; accuracy: ±1.0 degree
Temperature operating : -10˚ to 50˚ C (15˚F to +122˚ F);
Storage : -30˚ C to 70˚ C (-22˚F to +158˚ F)
Himidity : 90% RH @ 40°C (104°F) non-condensing
Altitu de : 2,000 m (6,562 ft) to full safety specifications
Dimensions : 17”W x 12.5”H x 12”D (42.7 cm x 32.0 cm x 26.9 cm)
Weight : 48 lbs (21 Kg)
