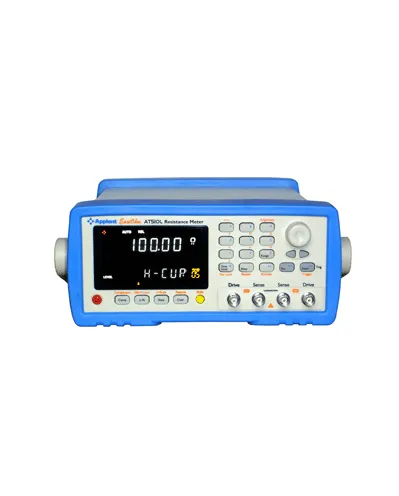

AT510L Micro ohm Meter adpots micro-processor control. Test range from 1μΩ~30kΩ, max reading: 30,000. our AT510L is designed for the test of low ohm resistance. AT510L adapts the same circuit as expert product has so as to meet general occasion test requirements. To reach high-cost performance, AT510L/AT510Mhave compacted part of upper limit and lower limit. Easy operation interface and high-cost performance can meet middle and low requirements.
Parameter : DC resistance Accuracy : 0.1% Measurement Range : 1μΩ~30kΩ Measurement current : I - Max: < 1A Range : Automatic and manual with 7 ranges Speed : 15 times/second 10 times/second 2 times/second Display : Show,ΔABS,Δ% and sorting results Display Max : 30,000 Adjustment : Short-circuit Zero-Adjust for each range REL function Comparator : NG-LO, GD-IN, NG-HI display and output adjustable beep and volume Trigger : Internal ,Manual Trigger Interface : None(Optional:RS-232C, Handler) Temperature compensation : Temperature compensation optional
