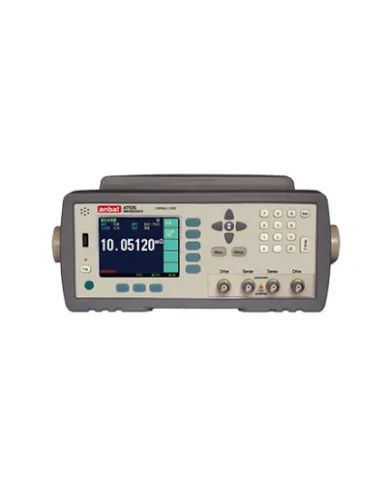

AT515 is the pioneer of a high precision resistance meter, which is used to test super low or low resistance, it adopts high-performance ARM micro processor control. 3.5 inches true-color LCD display screen with Chinese and English menu. AT515 has accuracy of 0.01% and resolution 0.1μΩ, 0.1μΩ - 1.2G1Ω measurement range. Excellent repeat measurement, break through the resistance value display of 6.5dgts, has 1,200,000 reading, maximum sampling rate is 4.5ms. Instrument has built-in temperature compensation interface to compensate the error caused by temperature.
Parameter : DC resistance Accuracy : 0.01% Measurement Range : 0.1μΩ~1GΩ Measurement current : Current range 1A~1A Range : Automatic and manual with 11 ranges Speed : 167 times/second, 30 times/second, 10 times/second, 2 times/second Display : Show, ABS、% and sorting result Display Max : 1,200,000 Adjustment : Open & short reset for each range Comparator : 14 groups record, NG-LO, GD-IN, NG-HI display and output, adjustable beep and volume Trigger : Internal, manual, external and remote Interface : RS232C, Handler interface (PLC interface) Temperature compensation : Accuracy: 0.2 °C Range: 0~80 °C
