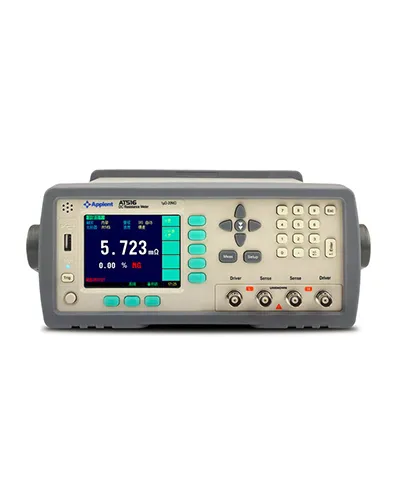

AT516 DC resistance meter adopts high-performance ARM microprocessor, it is a desktop instrument that can do full-automatic real-time test with 0.05% accuracy and 1μΩ~20MΩ measurement range. With 5 digits display, 30000 reading, the maximum sampling rate is 7ms. The built-in temperature compensation interface to reduce the tolerance. The built-in 14 bins of comparator output, can setup 10 GD bins, all the comparator results can be output by Handler interface.
Parameter : DC Rresistance Accuracy : 0.05% Measurement Range : 1μΩ~20MΩ Measurement current : Max current:<1A Range : 10 ranges,auto and manual Speed : 80 times/second,15 times/second,2 times/second Display : Show/ΔABS/Δ%/Sorting Results Display Max : 30,000 Adjustment : Short-circuit Zero-Adjust for each range. REL function Comparator : 14 build-in comparators, HI/IN/LOW/GD/NG display and output, adjustable beep and volume Trigger : Internal ,Manual ,External or Remote Trigger Interface : RS-232C, Handler (PLC interface) Temperature compensation : Accuracy: 0.2 °C Range: 0~80 °C
