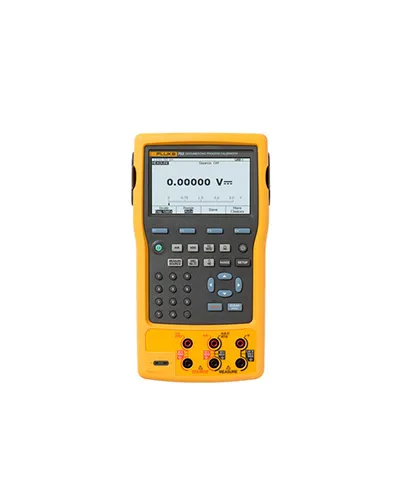

Documenting Process Calibrator – Fluke 753

Category :
Power Meter and Process Calibrator

Price :

Rp.178.500.000

Chat Us

DESCRIPTION
SPECIFICATION

The new 750 Series Documenting Process Calibrators are the best Fluke process tools on the market. The 740 Series, and now the 750 Series, are the top of the line documenting process calibrators available to process professionals. They combine all the process calibration tools into one powerful calibrator that does everything. The 754 goes even further by providing the ability to maintain and calibrate selected HART transmitters, a key process industry instrument. Any process professional you speak with will know about Fluke Documenting Process Calibrators. They trust them to increase their troubleshooting and maintenance capabilities and will continue to do so with this improved model.

Voltage DC :
100.000 mV 0.02%+0.005 mV 0.03%+0.005 mV
3.00000 V 0.02%+0.00005 V 0.03%+0.00005 V
30.0000 V 0.02%+0.0005 V 0.03%+0.0005 V
300.00 V 0.05%+0.05 V 0.07%+0.05 V
Voltage AC :
40 to 500 Hz Resolution 1 Year 2 Years
3.000 V 0.001 V 0.5%+0.002 V 1.0%+0.004 V
30.00 V 0.01 V 0.5%+0.02 V 1.0%+0.04 V
300.0 V 0.1 V 0.5%+0.2 V 1.0%+0.2 V
Current DC :
30.000 mA 0.01% + 5 uA 0.015%+7 uA
110.00 mA 0.01% + 20 uA 0.015%+30 uA
Resistance :
10.000 Ω 0.05% + 50 mΩ 0.07%+70 mΩ
100.00 Ω 0.05% + 50 mΩ 0.07%+70 mΩ
1.0000 kΩ 0.05% + 500 mΩ 0.07%+0.5 Ω
10.000 kΩ 0.1% + 10 Ω 0.15%+15 Ω
