Hand-held Transformer Tester – Megger TTR100-1

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

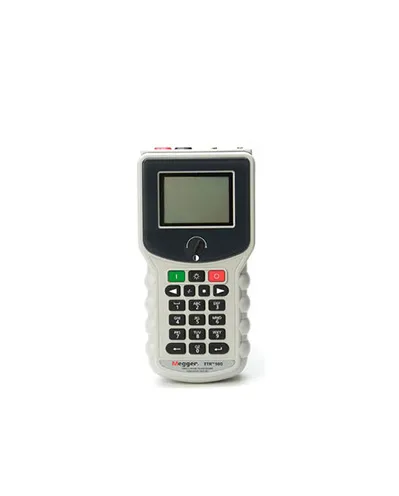

Megger TTR100-1 is a handheld, robust, lightweight and battery operated instrument. This TTR will complement several existing Megger transformer test products and will offer functions, such as winding resistance and polarity. These functions, as well as the phase angle measurement function, can be switched off when not required. With a turn ratio of 20,000:1, the TTR100-1 offers the highest turns ratio accuracy in the industry of 0.1%. The TTR100-1 features special software capabilities. The TTR100-1 is used to perform final test and calibration of transformers in the manufacturing process, such as a QA or Test Department. Using the new TTR100-1 in this environment will improve the productivity of such QA testing, as well as efficiently collect and store large amounts of data, which can be uploaded to a PC spreadsheet, or database program.

Test Frequency : 55 Hz internally generated providing a universal 50/60 Hz test set
Excitation Current Range : 0 to 100 mA, 4-digit resolution
Turns Ratio Range : 8 V ac: 0.8 to 20,000, 5 digit resolution (for transformers and PT testing) & 1.5 V ac: 5.0 to 2200, 5 digit resolution (for CT testing)
Phase Deviation Range : ±90º, 1 decimal point for the minutes display, 2 decimal points for the degree display, or for the centiradian display
Winding Resistance Range : 0 to 2000 Ω, 4 digit resolution
Transformer Vector Group : 1PH0 or 1PH6
Current (rms) Accuracy : ±5% rdg ±0.5 mA
Phase Deviation Accuracy : ±5 minutes
Turns Ratio Accuracy* :
±0.20% (0.8 to 4,000)
±0.25% (4,001 to 10,000)
±0.30% (10,001 to 20,000)
*For Excitation Current Values no greater than preset value
Winding Resistance Accuracy :
±(10% of reading + 1 digit) for 10 Ω to 2000 Ω range
±(10% ±1 mΩ) for 10 mΩ to 9.99 Ω range
±(10% ±0.5 mΩ) for 0.1 mΩ to 9.99 mΩ range
Measurement Method : ANSI/IEEE C57.12.90 and IEC 600076.1 (2000)
Dimensions : 9.5 H x 4.5 W x 1.875 D in. (241 H x 115 W x 48 D mm)
Weight : Approx. 3.3 lbs (1.5 kg), instrument only, without leads
