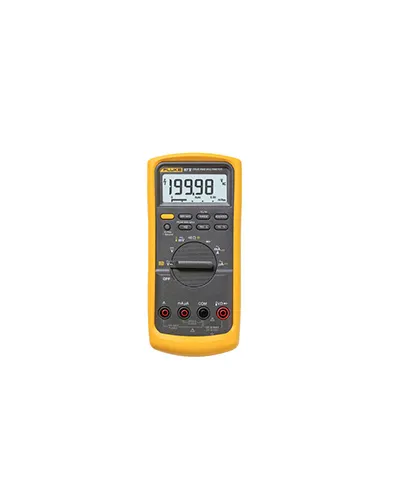

Fluke 87V delivers the accuracy and advanced troubleshooting capabilities you need. Designed specifically to handle complex signals, the 87V industrial multimeter, allows you to gain productivity by taking the guesswork out of drive system troubleshooting even in loud, high energy, and high altitude locations.
Voltage DC Maximum voltage : 1000 V Accuracy : ±(0.05% + 1) Maximum resolution : 10 µV Voltage AC Maximum voltage : 1000 V Accuracy : ±(0.7% + 2) True RMS AC bandwidth : 20 kHz with low pass filter; 3 db @ 1 kHz Maximum resolution : 0.1 mV Current DC Maximum amps : 10 A (20 A for 30 seconds maximum) Amps accuracy : ±(0.2% + 2) Maximum resolution : 0.01 µA Current AC Maximum amps : 10 A (20 A for 30 seconds maximum) Amps accuracy : ±(1.0% + 2) True RMS Maximum resolution : 0.1 µA Resistance Maximum resistance : 50 MΩ Accuracy : ±(0.2% + 1) Maximum resolution : 0.1 Ω Sizem : 201 x 98 x 52 mm (with holster) Weight : 355 g
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
