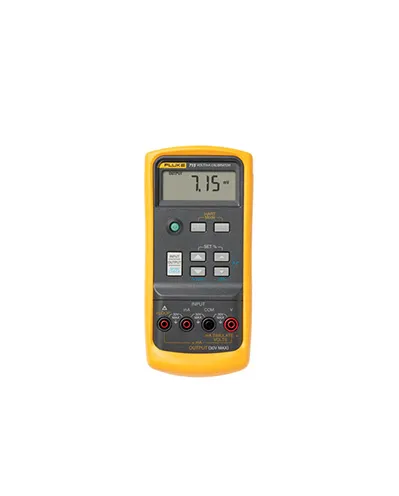

Loop Calibrator - Fluke 715

Category :
Power Meter and Process Calibrator

Price :

Rp.36.600.000

Chat Us

DESCRIPTION
SPECIFICATION

The Fluke 715 Volt/ mA Calibrator delivers outstanding performance, durability and reliability. Offered in the rugged Fluke 80 Series DMM package, the calibrator is compact, lightweight, and easy to carry. With a push button interface similar to the multifunction Fluke 740 Series Documenting Process Calibrators, the 715 is easy to use. It is EMI tolerant, dust and splash resistant, and features a removable battery door for quick battery changes.

Measure/Source mV :
Range : 0 to 200 mV
Resolution : 0.01 mV
Accuracy : 0.015% + 2 counts
Measure/Source V :
Range : 0 to 20 V
Resolution : 0.001 V
Accuracy : 0.01% + 2 counts
Loop Power :
Range : 24 V dc
Accuracy : +/- 10% & Note: Drive; 20 mA into 1000 Ω for battery >6.8V; 700 Ω for battery 5.8 to 6.8 V
Display : Clear 5 digit LCD
Operating Temperature : -10ºC to 55ºC
Storage Temperature : -40ºC to 60ºC
Humidity (Without Condensation) :
95% (10 ºC to 30 ºC)
75% (30 ºC to 40 ºC)
45% (40 ºC to 50 ºC)
35% (50 ºC to 55 ºC)
Operating Altitude : 3,000m max
Safety : CSA C22.2 No. 1010.1:1992
