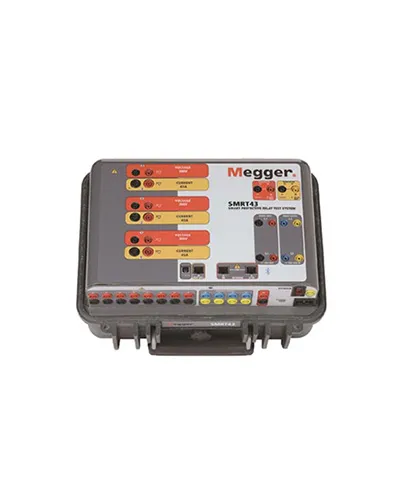

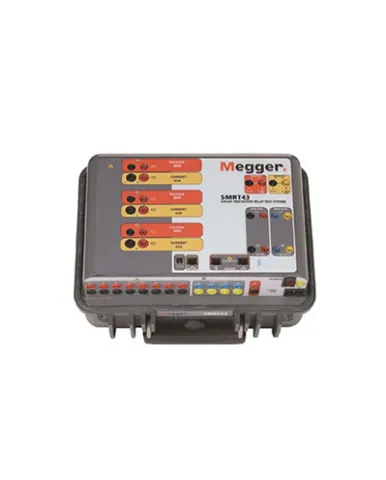

Multi-phase Relay Tester – Megger SMRT43

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The SMRT43 is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solid-state and microprocessor-based protective relays, motor overload relays and similar protective devices. The unit can be operated either manually via the built-in touch-screen user interface, or placed under full computer control via the AVTS, Advanced Visual Testing Software, or the RTMS, Relay Test Management Software, running on a PC. The built-in user interface, called the Smart Touch-View Interface™, is Megger’s second generation of automatic / semi-automatic manual user interface running the new RTMS software.

Binary Outputs : Rated for 300 V at 8 Amps
Binary Inputs : Rated 5 to 300 V AC/DC
Transducer Input : (Optional) DC voltage and DC milliamp input terminals
Voltage Outputs : Up to 3 channels 300 V at 150 VA
Current Outputs : Up to 3 channels 45 Amps at 300 VA per phase. Up 135 Amps at 900 VA single phase
USB 2.0 Interface : Communication and control port
Additional Binary Inputs : Provides 8 additional monitor circuits
Rugged Case : Fiberglass reinforced plastic.
PC/OUT: Ethernet Port is the primary PC connection port. Ethernet Port used to chain multiple SMRT units together for
synchronous multi-unit operation
Additional Binary Outputs : Binary Outputs 3 and 4 are rated for 300 V AC/DC, 8 amperes. Binary Outputs 5 and 6 are high speed and have an AC/DC voltage rating of 400 volts peak, 1 ampere
Battery Simulator : Use as a 4th AC voltage source (0 -150 V at 100 VA) for synchronizing, or use as a variable DC voltage source (0 to 250 V at 100 Watts /3.33 amps) as a battery simulator
