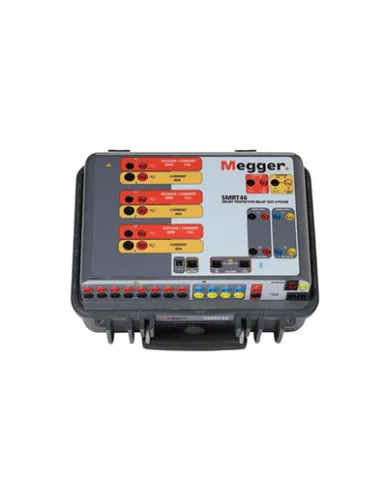

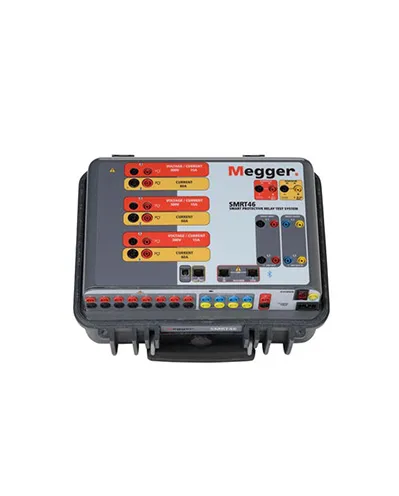

Multi-phase Relay Tester – Megger SMRT46

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The SMRT46 is a multipurpose, light-weight, field portable test set capable of testing a wide variety of electro-mechanical, solidstate and microprocessor-based protective relays, motor overload relays and similar protective devices. The SMRT46 has the “smart” combination of small size, light weight, with high power. The SMRT46 test system has the ability to be manually controlled with Megger’s Smart Touch View Interface™ (STVI) handheld controller running the new RTMS, Relay Testing Management Software. The STVI, with its large, full color, high resolution, TFT LCD touch screen allows the user to perform manual, steady-state and dynamic testing quickly and easily using the manual test screen, as well as using built-in preset test routines for most popular relays.

Binary Outputs : Rated for 300 V at 8 Amps
Binary Inputs : Rated 5 to 300 V AC/DC
Transducer Input : (Optional) DC voltage and DC milliamp input terminals
Voltage Outputs : Up to 3 channels 300 V at 150 VA, convertible to currents 15 A at 120 VA per phase
Current Outputs : Up to 3 channels 60 Amps at 300 VA per phase. Up 180 Amps at 900 VA single phase
USB 2.0 Interface : Communication and control port
Additional Binary Inputs : Provides 8 additional monitor circuits
Rugged Case : Fiberglass reinforced plastic
PC/OUT : Ethernet Port is the primary PC connection port. Ethernet Port used to chain multiple SMRT units together for
synchronous multi-unit operation
AC/DC Voltage Source : Use as a 4th AC voltage source (0 -150 V at 100 VA) for synchronizing, or use as a variable DC voltage source (0 to 250 V at 100 Watts /3.33 amps) as a battery simulator
Incoming Power/Line Cord Socket : 100 to 240 V, 50/60 Hz
