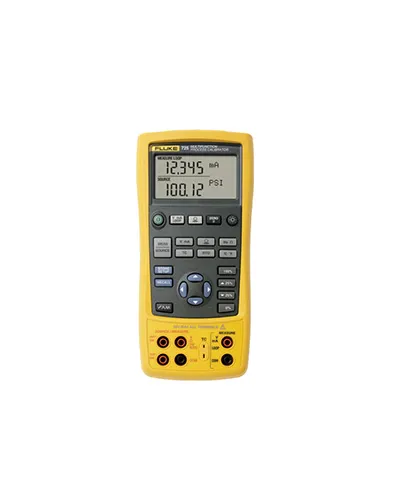

The Fluke 725 Multifunction Process Calibrator can test and calibrate almost any process parameter. Measure and source mA, volts, temperature (RTDs and thermocouples), frequency and ohms. From the moment you pick it up, the Fluke 725 is ready to perform. Its simple controls (without menus), make operation easy. The 725's split display lets you view input and output values simultaneously. For valve and I/P tests, you can source mA while measuring pressure. The 725 has auto-stepping and auto-ramping for remote testing, plus 25% stepping for fast linearity tests.
Voltage DC : 30.000 V : 0.02%+ 2 counts (upper display) 30.000 V : 0.02%+ 2 counts (lower display) 100.00 mV : 0.02%+ 2 counts -10.00 mV to 75.00 mV : 0.025 % + 1 count (via TC connector) Current DC : 24.000 mA, 0.02%+ 2 counts Resistance : 0.0 to 400.0 Ω 0.1Ω (4-wire), 0.15Ω (2- and 3-wire) 401 to 1500 Ω 0.5Ω (4-wire), 1Ω (2- and 3-wire) 1500 to 3200 Ω 1Ω (4-wire), 1.5Ω (2- and 3-wire) Frequency : 2.0 to 1000.0 CPM 0.05 % + 1 count 1.0 to 1100.0 Hz 0.05 % + 1 count 1.00 to 10.00 kHz0.05 % + 1 count Sensitivity : 1 V peak-to-peak-minimum Pressure : Accuracy from 0.025% of range using any of 29 pressure modules. (for detailed specifications refer to pressure modules in options and accessories) Operating Temperature : -10 °C to +55 °C Storage Temperature : -20 °C to 71 °C Operating Altitude : 3000 m Size : 130 x 236 x 61 mm Weight : 0.65 kg
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
