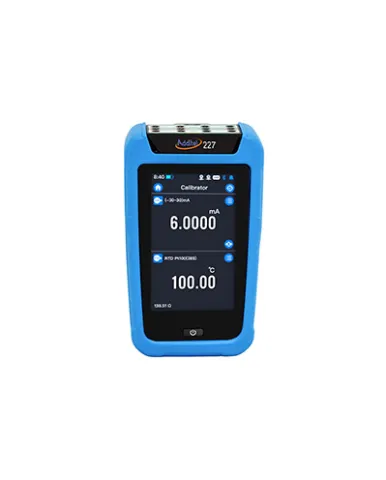

Multifunction Process Calibrator with HART Communication - Additel 227

Category :
Power Meter and Process Calibrator

Price :

Rp.175.500.000

Chat Us

DESCRIPTION
SPECIFICATION

Additel’s new Multi-functional Documenting Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. This series includes an advanced documenting pressure calibrator (ADT227) and an advanced documentation process calibrator with a builtin HART communicator (ADT227-HART). Additionally, each calibrator has an ATEX certified intrinsically safe option (ADT227Ex) allowing you to perform calibration in the harshest of environments. We’re confident these new tools will not only meet your calibration requirements but will make metrology simple for you

Electrical Specifications - Source Accuracy :
Voltage DC range : 0 to 15 V
Resolution Voltage DC : 0.1 mV
Accuracy Voltage DC : 0.005%RDG+0.005%FS
Current DC range : 0 to 25 mA
Resolution Current DC : 0.1 uA
Accuracy Current DC : 0.01%RDG+0.005%FS
Resistance range :
0 to 400 Ω
0 to 4000 Ω
Resistance resolution :
1 mΩ
10 mΩ
Resistance accuracy :
0.005%RDG+0.005%FS
0.01%RDG+0.005%FS
Frequency range : 0.01 to 50000.0 Hz
Frequency resolution : Auto range, 6-digit
Frequency accuracy : 0.002%RDG+2 on last digit
Voltage mV (TC) range : -10 to 75 mV
Voltage mV (TC) resolution : 0.1 uV
Voltage mV (TC) accuracy : 0.0008%RDG + 0.004%FS

Electrical Specifications - Measurement Accuracy :
Voltage DC range : -300 to 300 mV / -30 to 30 V
Voltage DC resolution : 1 μV / 0.1 mV
Voltage DC accuracy : 0.005% RDG + 0.005% FS / 0.005% RDG + 0.005% FS
DC High Voltage range : -3 to 3 V, -30 to 30 V, -300 to 300 V
AC HIgh Voltage range : 3V (40 to 500 Hz), 30V (40 to 500 Hz), 300V (40 to 500 Hz)
Current DC range : -30 to 30 mA
Current DC resolution : 0.1 μA
Current DC accuracy : 0.01% RDG + 0.005% FS
Resistance (4-Wire) range : 0 to 400 Ω / 0 to 4000 Ω
Resistance (4-Wire) resolution : 1 mΩ / 10 mΩ
Resistance (4-Wire) accuarcy : 0.005% RDG + 0.005% FS / 0.01% RDG + 0.005% FS
Voltage mV (TC) range : -10 to 75 mV
Voltage mV (TC) resolution : 0.1 μV
Voltage mV (TC) accuarcy : 0.008% RDG + 0.004% FS
Frequency range : 0.01 to 50000 Hz
Frequency resolution : Auto range, 6-digit
Frequency accuracy : 0.002% RDG + 2 on last digit

Operating Temperature : -10°C to 50°C
Specification guaranteed temperature range : 10°C to 30°C
Storage Temperature : -20°C to 60°C
Humidity : <95%, non-condensing
Power supply : 6600mAh, 23.8Wh lithium battery, charging time 4~6 hours, battery pack can be charged independently
User interface : Icon drive menus
Ports protection voltage : 50V max
Display : 5.0 inch 480 x 800 mm TFT LCD capacitive screen
Maximum altitude : 3000 meters
European Compliance : CE Mark
Electrical Connection : Ø4mm sockets and flat mini-jack thermocouple socket
Size : 6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)
Weight : 1.6 lb (0.7 kg)
