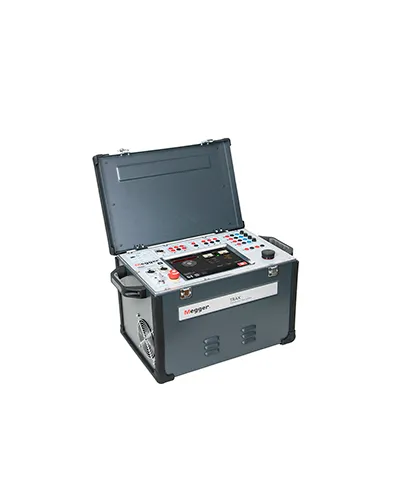

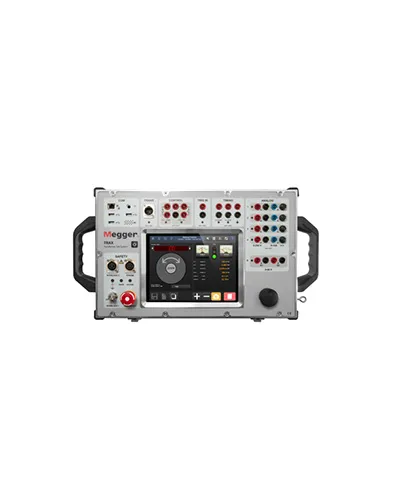

Multifunction Transformer and Substation Test System - Megger TRAX219

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

TRAX is a multi-functional solution for transformer testing. It also adds several common substation testing functionalities, and ultimately replaces numerous individual testing devices. Compared to conventional single-functionality instruments, TRAX saves time and is more cost effective. TRAX is not just another multi-functional test instrument, but rather many intelligent instruments built into one box. The software includes a number of apps, making it fast and easy to perform a large range of different tests. The hardware offers unmatched flexibility and the range of cables and accessories adds even more flexibility, making the TRAX an efficient and time saving system for any user in the world

200 A AC current output.
SW: manual control
No internal screen, remote control only included software: Manual control and Standard transformer
package (AJ-8010X)
Variable AC and DC voltage and current outputs
All AC outputs variable frequency 5–505 Hz
Four analog inputs capable of measuring AC and DC voltages/currents
Three binary inputs for timing, contact or voltage sense
TRIG IN to start the measurement from an external trig signal (contact or voltage)
Capability to manually as well as automatically ramp voltage or current outputs
Capability to manually as well as automatically generate sequences of voltage or current outputs
Mains input : 100–240 V, 50/60 Hz (± 10%)
Current input : ≤ 16 A continuous, Short-term up to 30 A < 60 s
Operating temperature : -20°C to +55°C (-4°F to +131°F)
Display : TFT touch, 10.4 inch, 1024 x 768
Ethernet port : For running the instrument from an external PC or connect it to an external network
USB : 3 USB ports for multipurpose use
CE-Marking : EMC IEC 61326-1, LVD IEC 61010-1:2010
Dimensions (main unit) : 475 x 315 x 330 mm (excl. handles)
Weight TRAX 219 : 25 kg (55 lbs)
