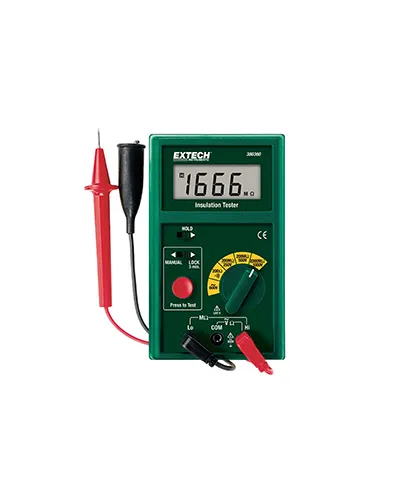

The 380360 is a 1000V digital tester with an automatic 3 minute test. Three test voltages of 250V, 500V and 1000V. Insulation Resistance to 2000MΩ. Automatic discharge when safety "Press to Test" button is released. Complete with 6 x AA batteries, heavy duty 2.5 ft. (0.8m) test leads, alligator clip, large probe and case with neck strap
Insulation Voltage : 250V, 500V, 1000V Insulation resistance(basic accuracy) : 200M/2000MΩ AC Voltage (accuracy) : 600V Low Resistance : 200Ω Output short circuit current : 1.5 mA 0.3-0.5 mA Ohmmeter (accuracy) : 20/200Ω (auto) Overload Protection : 2200V (< 1 min) Continuity Beeper : <100Ω Dimensions : 3.8 x 6.3 x 2.3" (97 x 160 x 58mm) Weight : 13oz (369g)
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
