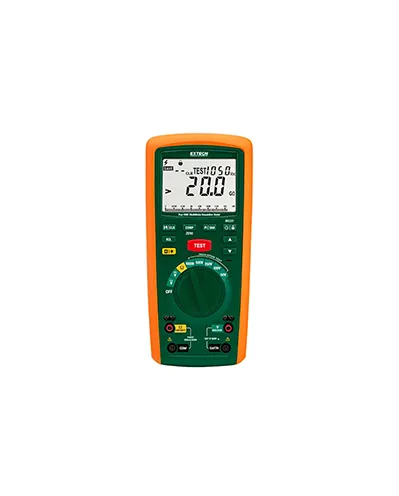

Combines a portable 20GΩ/1000V Insulation Tester with a True RMS MultiMeter. Insulation tester includes PI/DAR modes, programmable timer, and a comparator for custom test configurations and quick results. Multimeter functions include AC/DC Voltage, Resistance, and Continuity Test. Manually store/recall up to 99 readings. Designed with rugged housing and large backlit 6,000 count LCD display with analog bargraph. Complete with test leads, alligator clip, 6 x AA batteries, and soft case
Insulation Resistance : 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ Insulation Test Voltages : 50V, 100V, 250V, 500V, 1000V AC/DC Voltage : 600V Resistance : 20kΩ Continuity : Yes Dimensions : 8.9 x 4.1 x 2.3" (225 x 103 x 59mm) Weight : 1.5lbs (0.7kg)
