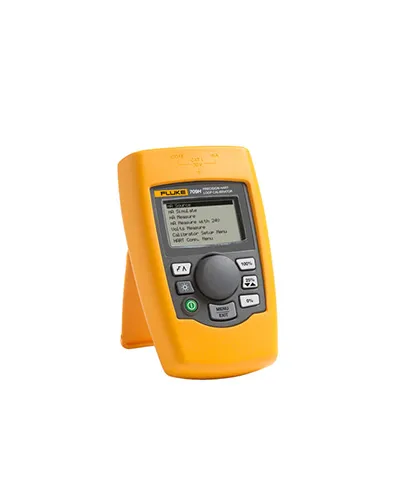

Precision Loop Calibrator With HART - Fluke 709H

Category :
Power Meter and Process Calibrator

Price :

Rp.27.600.000

Chat Us

DESCRIPTION
SPECIFICATION

The Fluke 709H calibrator is built around a user friendly interface with a Quick-Set rotary encoder knob. This tool reduces the time it takes to measure, or source, voltage or current and power up a loop. The protective holster easily fits into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas. The 709H offers : Best-in-class accuracy at 0.01% reading, Intuitive user interface with Quick-Set knob for fast setup, easy use, Built in selectable 250 Ω resistor for HART communication, 24 V DC loop power with mA Measure Mode (-25% to 125%), Resolution of 1 µA on mA ranges and 1 mV on voltages ranges & Auto Shutdown to conserve battery life (adjustable up to 30 minutes).

Functions mA source, mA simulate, mA read, mA read/loop power, and volts read.
Ranges mA (0 to 24mA) and Volts (0 to 30VDC)
Resolution : 1 µA on mA ranges and 1 mV on voltage range
Accuracy : 0.01% +/- 2 counts, all ranges (@23° +/- 5°C)
Operating Temperature Range : -10 °C to 55 °C (14 °F to 131°F)
Humidity Range : 10 to 95% non-condensing
Stability : 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
Display : 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
Power : 6 AAA alkaline
Battery Life : 40 hours typical
Loop Compliance Voltage : 24VDC @ 20mA
Over-Voltage Protection : 240 VAC
Overload Current Protection : 28 mA DC
EMC : EN61326 Annex A (Portable Instruments)
Dimensions (L x W x D) : 15 cm x 9 cm x 3 cm (6 x 3.6 x 1.3)
Weight : 0.3 kg (9.5 ounces)
Included Accessories : NIST traceable calibration certificate with data, batteries, test leads, and manual
