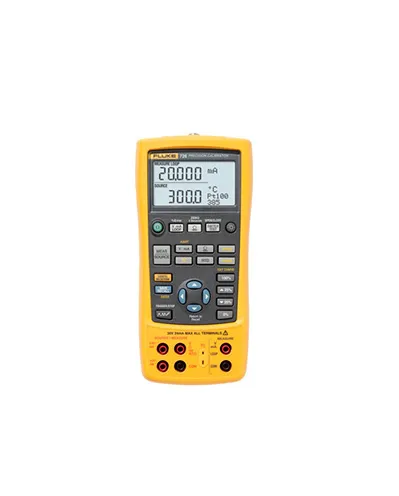

The Fluke 726 precision multifunction process calibrator is designed specifically for the process industry with broad workload coverage, calibration power and unsurpassed accuracy. The Fluke 726 measures and sources almost all process parameters and can calibrate almost anything. Additionally, this Fluke multifunction process calibrator will interpret results without the help of a calculator and stores measurement data for further analysis. Two separate channels allow the Fluke 726 to measure, source and view process signals simultaneously
Measurement Accuracy : Voltage DC : 30.000 V - 0.01% + 2 mV (upper display) 20.000 V - 0.01% + 2 mV (lower display) 90.00 mV - 0.01% + 10 μV -10.00 mV to 75.00 mV - 0.025% + 1 count (via TC connector) Current DC : 24.000 mA - 0.01%+ 2 mA Resistance : 0.0 to 4000.0 Ω - ± 0.015% Pressure : Accuracy from 0.025% of range using any of 29 pressure modules (for detailed specifications refer to pressure modules in options and accessories). Modules available for differential, gauge, vacuum, absolute, dual and high pressure Operating temperature : -10°C to +55°C Storage temperature : -20°C to +71°C Operating altitude : 3000 m Size : 200 x 96 x 47 mm (7.9 x 3.8 x 1.9 in) Weight : 650 g (23 oz)
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
