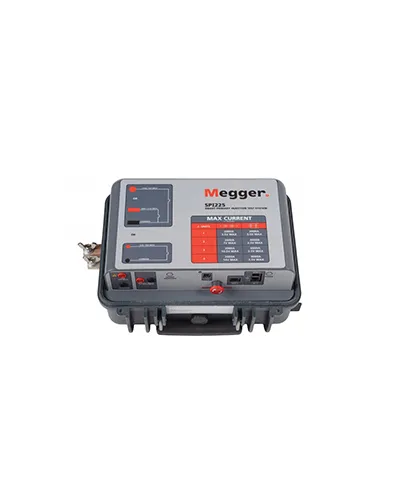

Primary Current Injection Tester - Megger SPI225

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The SPI225 is a high current primary injection test system for all forms of high current testing required in a substation, including testing overcurrent relays, circuit breakers, motor overloads and current transformers. The SPI system is the FIRST high current test systems to permit a user to type in a predetermined current and the SPI system will generate and regulate the requested high current without preheating the test sample by pulsing the output current at high currents. The SPI system also has the unique ability to turn on at the current zero crossing every time for any load by automatically adjust the output firing angle

Input voltage : 120 +10% -5% & 240 +10% -5%
Output ranges : Continuously adjustable in three ranges to meet a variety of test circuit impedances :
25 to 500 A at 3.5 V max.
6.25 to 125 A at 14 V max
1.25 to 25 A at 70 V max
Ammeter
Operating mode : Memory, Continuous
Digital display : Autoranging display 5-digit
Ranges : 1.0000 A to 99.999 kA
Overall ammeter system : Continuous ±1% of reading
Accuracy : RMS Pulse ±1.5% of reading
Voltmeter :
Digital display : 5-digit Autoranging display
Ranges : 0.01 to 600.00 Volts
Accuracy : ±1% of reading
Operating temperature range and humidity :
Operating : 0° C to 50° C
Storage : -30° C to 70° C
Humidity : 0 to 90% Non Condensing
Communications port : Ethernet (2), USB 2.0 and Bluetooth (optional)
Dimensions : 14.2 W x 7.6 H x 12.0 D in. (360 W x 194 H x 305 D mm)
Weight : 44.0 lb. (20 kg)
