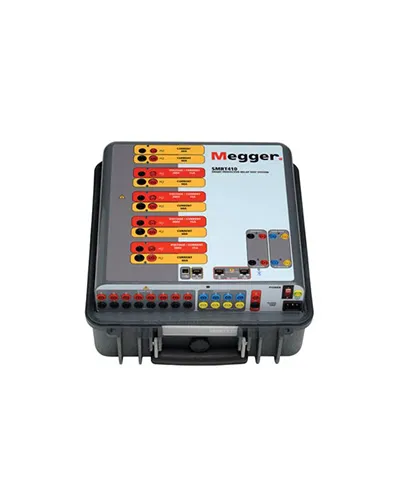

Relay Test System – Megger SMRT410

Category :
Power Meter and Process Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

The SMRT410 test system may be customized by adding the number of Voltage-Current, “VIGEN”, modules needed for specific test applications. The SMRT410 has the “smart” combination of high compliance voltage and high current to test all electromechanical, solid-state and microprocessor-based overcurrent relays, including voltage controlled, voltage restraint and high impedance directional ground overcurrent. The SMRT410 provides a complete multi-phase test system for commissioning of protection systems. With up to 4 voltage channels a 6 high currents, the SMRT410 meets every testing need. The SMRT410 VIGEN modules also provide high power in BOTH the voltage and current channels to test virtually all types of protective relays.

Binary Outputs : Rated for 300 V at 8 Amps
Binary Inputs : Rated 5 to 300 V AC/DC
Voltage Outputs : Up to 4 channels 300 V at 150 VA, convertible to currents 15 A at 120 VA per phase
Current Outputs : Up to 6 channels 60 Amps at 300 VA per phase
USB 2.0 Interface : Communication and control port
Additional Binary Inputs : Provides 8 additional monitor circuits
Rugged Case : Fiberglass reinforced plastic
PC/OUT: Ethernet Port is the primary PC connection port. Ethernet Port used to chain multiple SMRT units together for
synchronous multi-unit operation
Additional Binary Outputs : Adds 4 outputs. Binary Outputs 3 and 4 are rated for 300 V AC/DC, 8 amperes. Binary Outputs 5 and 6 are high speed and have an AC/DC voltage rating of 400 volts peak, 1 ampere
Battery Simulator : Variable 5 to 250 Volts DC output at 100 Watts (4 amperes maximum)
Incoming Power/Line Cord Socket : 100 to 240 V, 50/60 Hz
