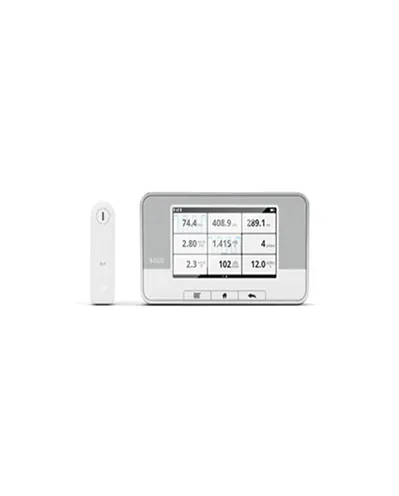

RaySafe X2 Solo is a new product line from RaySafe that covers the measurement needs of your specific X-ray modalities. It’s based on the same technology as RaySafe X2, highly esteemed for its user-friendliness and performance, but instead of multi-modality capability, each model meets specific needs. Within your X-ray modalities the X2 Solo will meet all your QA or service measurement needs
Range : 0.001 – 9999 mAs Resolution : 0.001 mAs Uncertainty : 1 % Range (peak) : 0.1 – 1500 mA Resolution : 0.01 mA Uncertainty : 1 % EMC : according to IEC 61326-1 Safety : according to IEC 61010-1 X-Ray meters standard : complies with IEC 61674 Exposures needed :One USB cables :2 m (6.6 ft), 5 m (16.4 ft) and 5 m active extender Operating temperature :15 – 35 °C (59 – 95 °F) Storage temperature :-25 – 70 °C (-13 – 158 °F) Power source :Rechargeable Li ion battery Battery time :~ 10 hours intensive usage Battery tested :According to UN 38.3 Display : 4.3″ LCD with capacitive touch Memory :~ 10000 latest exposures Software :X2 View for data handling and analysis. Also exports data to Microsoft Excel Size of base unit : 34 x 85 x 154 mm (1.3 x 3.3 x 6.1 in) Weight of base unit : 521 g (18.4 oz)
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
