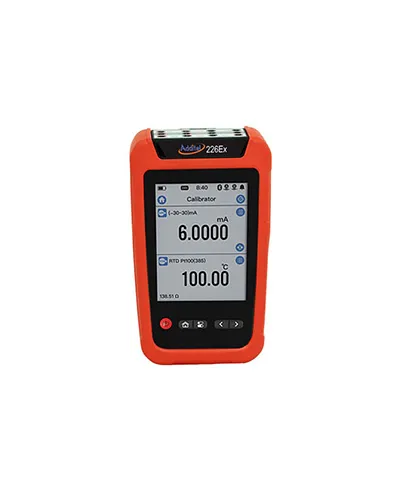

Multifunction Process Calibrator – Additel 226EX

Category :
Power Meter and Process Calibrator

Price :

Rp.78.600.000

Chat Us

DESCRIPTION
SPECIFICATION

Additel’s new Multi-functional Process Calibrator series takes portability, functionality, and accuracy to a whole new level and packages it with an intuitive and easy to use color touchscreen display. The ADT226 is a powerful yet cost effective process calibrator, which has an ATEX certified intrinsically safe option - ADT226Ex allowing you to perform calibration work in the harshest of environments. We’re confident these new tools will not only meet your calibration requirements but will make metrology simple for you

Electrical Specifications - Source Accuracy :
Voltage DC range : 0.1 mV
Resolution Voltage DC : 0.02%RDG+0.005%FS
Accuracy Voltage DC :
Current DC range : 0 to 25 mA
Resolution Current DC : 0.1 uA
Accuracy Current DC :
Resistance range :
1 mΩ
10 mΩ
Resistance resolution :
0.02%RDG+0.005%FS
0.02%RDG+0.005%FS
Resistance accuracy :
Frequency range : 0.01 to 50000.0 Hz
Frequency resolution : Auto range, 6-digit
Frequency accuracy : 0.005%RDG+5 on last digit6-digit 0.005%RDG+5 on last digit

Electrical Specifications - Measurement Accuracy :
Voltage DC range : -300 to 300 mV / -30 to 30 V
Voltage DC resolution : 1 μV / 0.1 mV
Voltage DC accuracy : 0.02% RDG + 0.005% FS
DC High Voltage range :
AC HIgh Voltage range :
Current DC range : -30 to 30 mA
Current DC resolution : 0.1 μA
Current DC accuracy : 0.02% RDG + 0.005% FS
Resistance (4-Wire) range : 0 to 4000 Ω
Resistance (4-Wire) resolution : 10 mΩ
Resistance (4-Wire) accuarcy : 0.02% RDG + 0.005% FS
Voltage mV (TC) range : -10 to 75 mV
Voltage mV (TC) resolution : 0.1 μV
Voltage mV (TC) accuarcy : 0.02% RDG + 0.005% FS
Frequency range : 0.01 to 50000 Hz
Frequency resolution : Auto range, 6-digit
Frequency accuracy : 0.005% RDG + 5 on last digit

Operating Temperature : -10°C to 50°C
Specification guaranteed temperature range : 10°C to 30°C
Storage Temperature : -20°C to 70°C
Humidity : <95%, non-condensing
Power supply : 4000mAh 14.4Wh Explosion-proof lithium battery packcharging time 6~8 hours, battery pack can be charged independently
User interface : Icon driven menus with navigation buttons
Ports protection voltage : 30V max
Display : 5.0 inch 480 x 800 mm TFT LCD capacitive screen
Maximum altitude : 3000 meters
European Compliance : CE Mark
Electrical Connection : Ø4mm sockets and flat mini-jack thermocouple socket
Size : 6.97" x 4.13" x 2.04" (177 mm x 105 mm x 52 mm)
Weight : 1.65 lb (0.75 kg)
