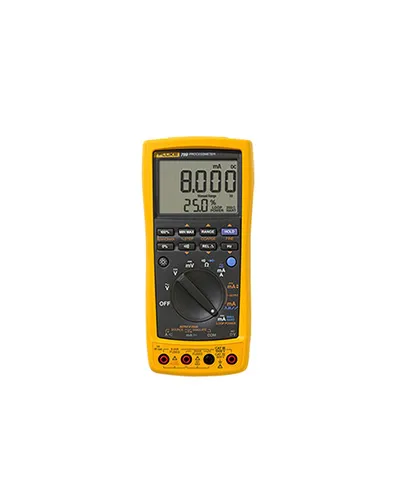

The Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals, combining the functionality of a loop calibrator with the power of a digital multimeter. By equipping the 789 with a temperature measurement module and the wireless data logging capabilities of Fluke Connect™ with ShareLive™ video call (sold separately), process technicians can now do a lot more while carrying a lot less. And with its built-in, selectable 250 ohm HART® resistor, it eliminates the need to carry a separate resistor with you.
Current measurement : Range : 0-1 A AC or DC Resolution : 1 mA Accuracy : 0.2% + 2 LSD (DC) Range : 0-30 mA Resolution : 0.001 mA Accuracy : 0.05% + 2 lSD Current sourcing : Range : 0-20 mA or 4-20 mA Resolution : 0.05% of span Drive capability : 24 V Compliance or 1200 Ω @ 20 mA Frequency : To 19.999 kHz, 0.005% + 1 LSD Continuity : Beeps for resistance < 100 Ω Voltage measurement : Range : 0-1000 V AC (true-rms) or DC Resolution : 0.1 mV to 1.0 V Accuracy : 0.1% Rdg + 1 LSD (VDC) Resistance measurement : To 40 MΩ, 0.2% + 1 LSD Overvoltage category : IEC 1010-1 CAT III 1000 V & IEC 1010-1 CAT IV 600 V Maximum voltage : 1000 V rms Size : 50 x 100 x 203 mm (1.25" H x 3.41"W x 7.35" L) Weight : 610 g (1.6 lbs)
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
The CMC 356 is the universal solution for testing all generations and types of protection relays. Its powerful six current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, make the unit capable of testing even high-burden electromechanical relays with very high power demands. The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power. Commissioning engineers will particularly appreciate its ability to perform wiring and plausibility checks of current transformers, by using primary injection of high currents from the test set.
