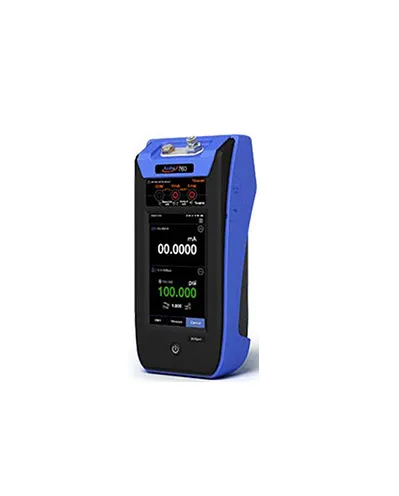

Automatic Handheld Pressure Calibrator - Additel 760 MA

Category :
Pressure Calibrator

Price :

Rp.206.000.000

Chat Us

DESCRIPTION
SPECIFICATION

The 760-MA generates and controls pressure from vacuum pressures up to 300 psig (20 bar.g) with an accuracy of 0.02%FS. Equipped with a built-in barometric reference, each unit can switch between gauge and absolute pressure types. A variety of internal sensors are available which offer lower pressure ranges for improved performance. Each model of the Additel 760 series has an option incorporating documentation and communication functions turning your 760 into a multifunction documenting process calibrator.This feature provides HART communication, task documentation and data logging.

Max pressure range : -12.5 to 300 psig (-0.86 to 20 bar.g)
Accuracy : 0.02% FS
Stability : <0.005% FS
Pressure type : Gauge, Absolute
Over range indication : 120 %
Resolution : 6 digits
Measurement units : Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C, mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, kg/m2, mtorr, torr, lb/ft2, tsi, custom
Barometric accuracy : 60 Pa
Connection : Hose, 5 ft (1.5 m), with built-in filter to 1/4BSPF, 1/4NPTF and M20F adapters
Pressure output rate : <90 Seconds (300 psi/5 ml)
