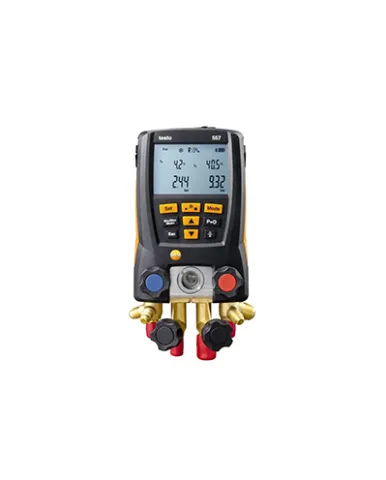

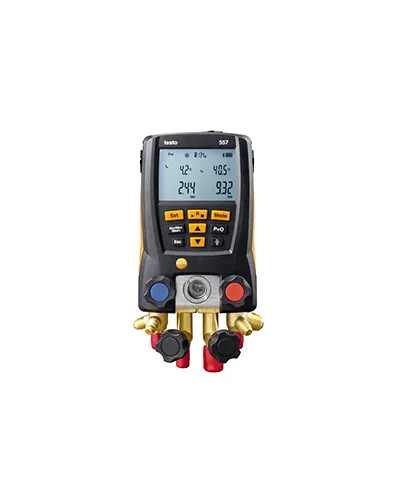

Digital Manifold Set – Testo 557

Category :
Pressure Calibrator

Price :

Rp.123

Chat Us

DESCRIPTION
SPECIFICATION

Testo 557, this digital manifold replaces multiple tools in the refrigeration industry and can be connected to a practical app. As well as the features of the testo 550 manifold, the testo 557 offers a high-precision external Pirani gauge for vacuum measurement: this enables the quick, safe evacuation of refrigeration systems and heat pumps. The testo 557 4-way manifold was developed to relieve your workload, to make your work more efficient, and to deliver more accurate measurement results – as well as to offer your customers services that are even more reliable.

Temperature Measuring range : -50 to +150 °C
Accuracy : ±0.5 °C
Resolution : 0.1 °C
Probe connection : 2 x Plug-in (NTC)
Pressure measurement Measuring range : -1 to 60 bar
Accuracy : ±0.5 % fs
Resolution : 0.01 bar
Probe connection : 3 x 7/16" – UNF + 1 x 5/8'' – UNF
Overload rel. (high pressure) : 65 bar
Vacuum measurement measuring range : 0 to 20000 micron
Accuracy : ± (10 micron + 10 % of mv) (100 to 1000 micron)
Resolution :
1 micron (0 to 1000 micron)
10 micron (1000 to 2000 micron)
100 micron (2000 to 5000 micron)
500 micron (5000 to 10000 micron)
5000 micron (10000 to 20000 micron)
